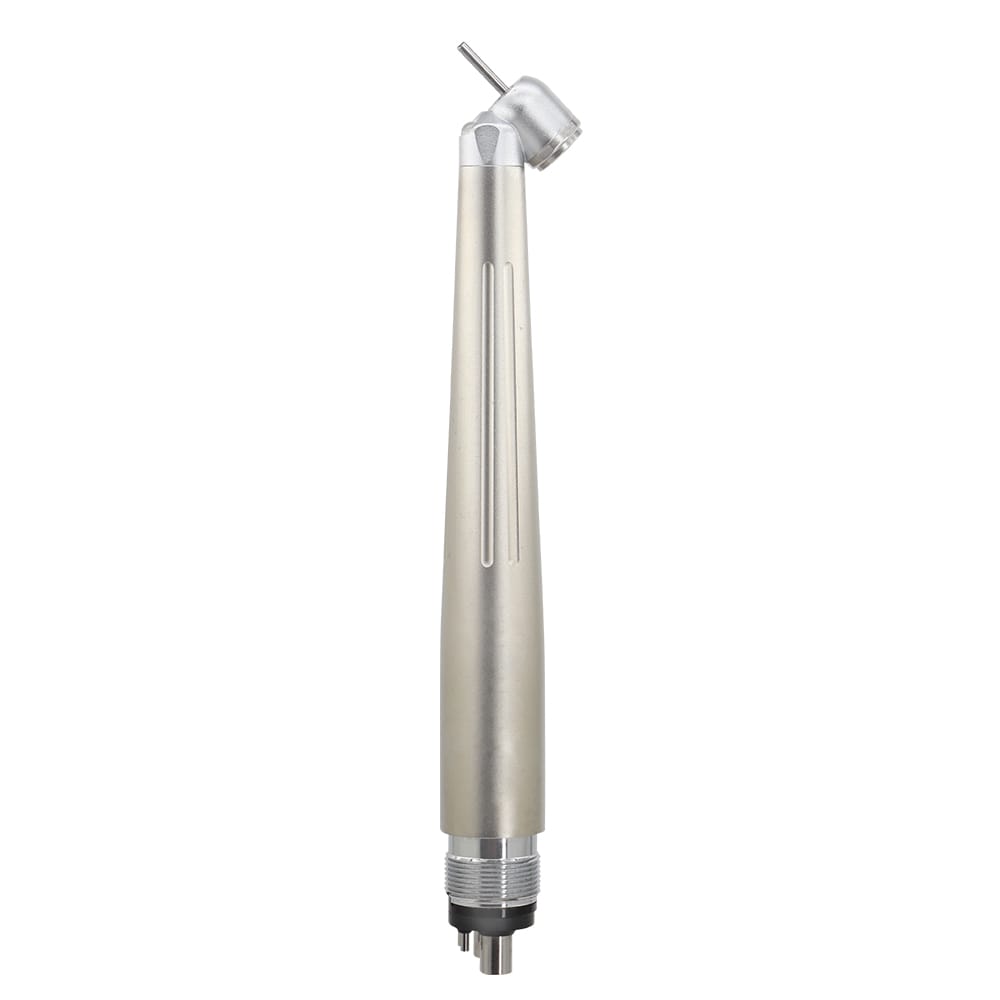

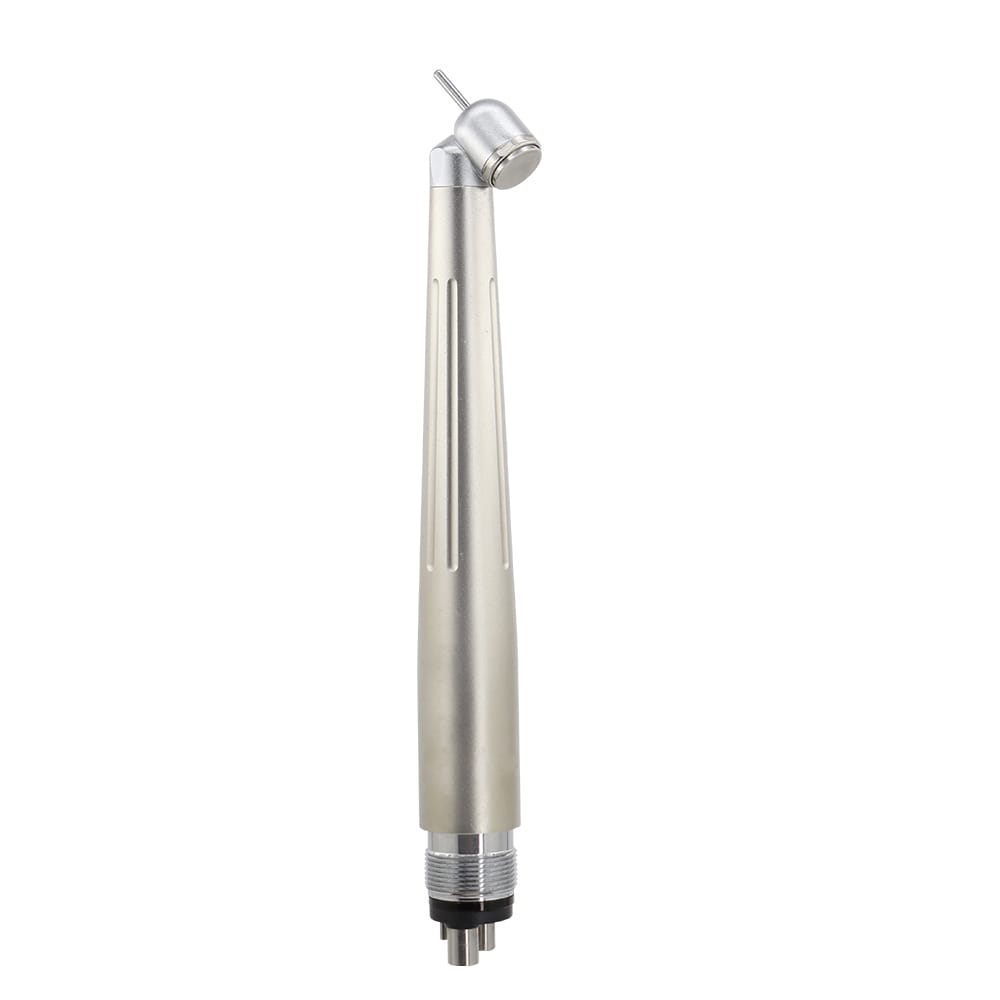

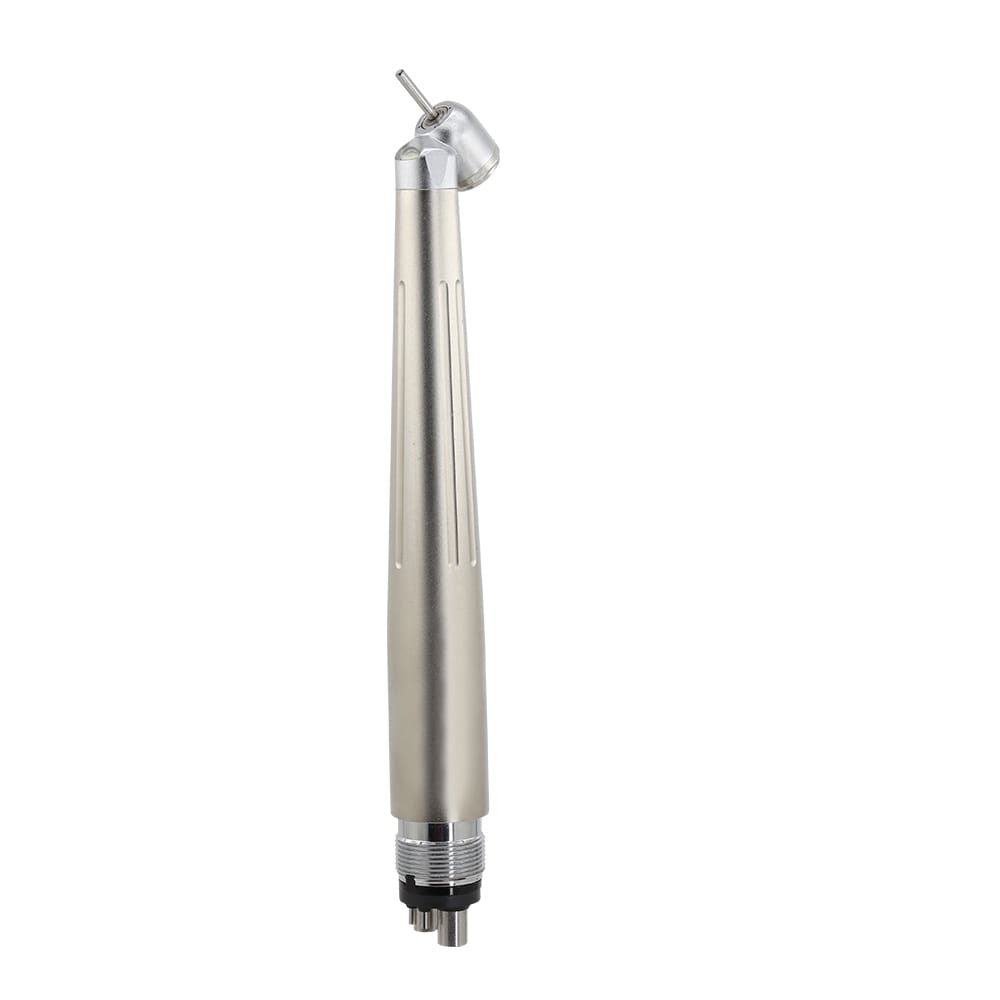

45° Mini Titanium-Coated LED High-Speed Handpiece

Description

45° Mini Titanium-Coated LED High-Speed Handpiece

• Double arc-line grip pattern for secure ergonomic control
• Titanium-coated body for superior corrosion resistance and premium finish
• Mini head design for enhanced access to restricted intraoral spaces
• Built-in LED illumination for shadow-free surgical visibility
• Single-jet water cooling with rear exhaust design
• Push-button bur release for fast, one-handed bur changes
• Available in 2-hole and 4-hole connection interfaces
• Compatible with autoclave sterilization at 135°C

[Send Inquiry]

---

Description

The 45° Mini Titanium-Coated LED High-Speed Handpiece brings together four targeted clinical advantages in a single instrument: the posterior access geometry of a 45-degree head angle, the maneuverability benefit of a compact mini head, integrated LED illumination for shadow-free operative visibility, and a durable titanium-coated body finished with a double arc-line surface pattern.

Designed for clinicians who work in restricted intraoral environments where every millimeter of clearance and every lumen of light matters, this handpiece delivers exceptional access to second and third molars, narrow arches, and deep posterior preparations while ensuring the operative field remains consistently and brightly illuminated throughout the procedure. The single-jet water spray cooling system with rear exhaust effectively manages heat at the bur-tooth interface, protecting pulp vitality during high-speed cutting. Operating at 320,000–350,000 RPM with a working pressure of 0.22–0.25 MPa, it provides reliable, high-torque cutting performance across all clinical applications.

---

Feature

• The 45-degree angled head geometry provides improved approach angles to posterior teeth and distal molar surfaces, enabling precise preparation with a more neutral wrist position and significantly reduced operator fatigue during extended procedures.
• The mini head design reduces overall head volume compared to standard handpiece heads, improving access to restricted intraoral spaces such as narrow arches, deep posterior preparations, pediatric patients, and cases with limited mouth opening.
• The integrated LED light source activates automatically with the air supply, casting a bright, focused beam directly at the bur tip and eliminating the shadow artifacts caused when the handpiece body blocks overhead operatory lighting — a particularly critical advantage when working in the confined geometry of a mini head in a posterior location.
• Single-jet water spray cooling combined with a rear exhaust system delivers targeted heat dissipation at the bur-tooth contact point, effectively controlling thermal buildup and protecting pulp vitality throughout the cutting process.
• The titanium-coated body provides a harder, more chemically stable surface than standard metal handpieces, ensuring long-term resistance to corrosion, wear, and surface degradation across repeated high-temperature sterilization cycles.
• The double arc-line surface pattern delivers a secure, non-slip grip in wet or gloved conditions, complementing the precision control required when working in restricted posterior spaces.
• Compatible with both 2-hole and 4-hole connection standards for broad compatibility with mainstream dental unit interfaces.

---

45° Mini Titanium-Coated LED High-Speed Handpiece — Specifications

---

Working Principle

The 45° Mini Titanium-Coated LED High-Speed Handpiece operates on a pneumatic turbine principle. Compressed air enters through the connection interface at 0.22–0.25 MPa, driving the internal turbine rotor to achieve rotational speeds of 320,000–350,000 RPM, generating the sustained cutting force required for efficient tooth preparation across enamel, dentin, and restorative materials.

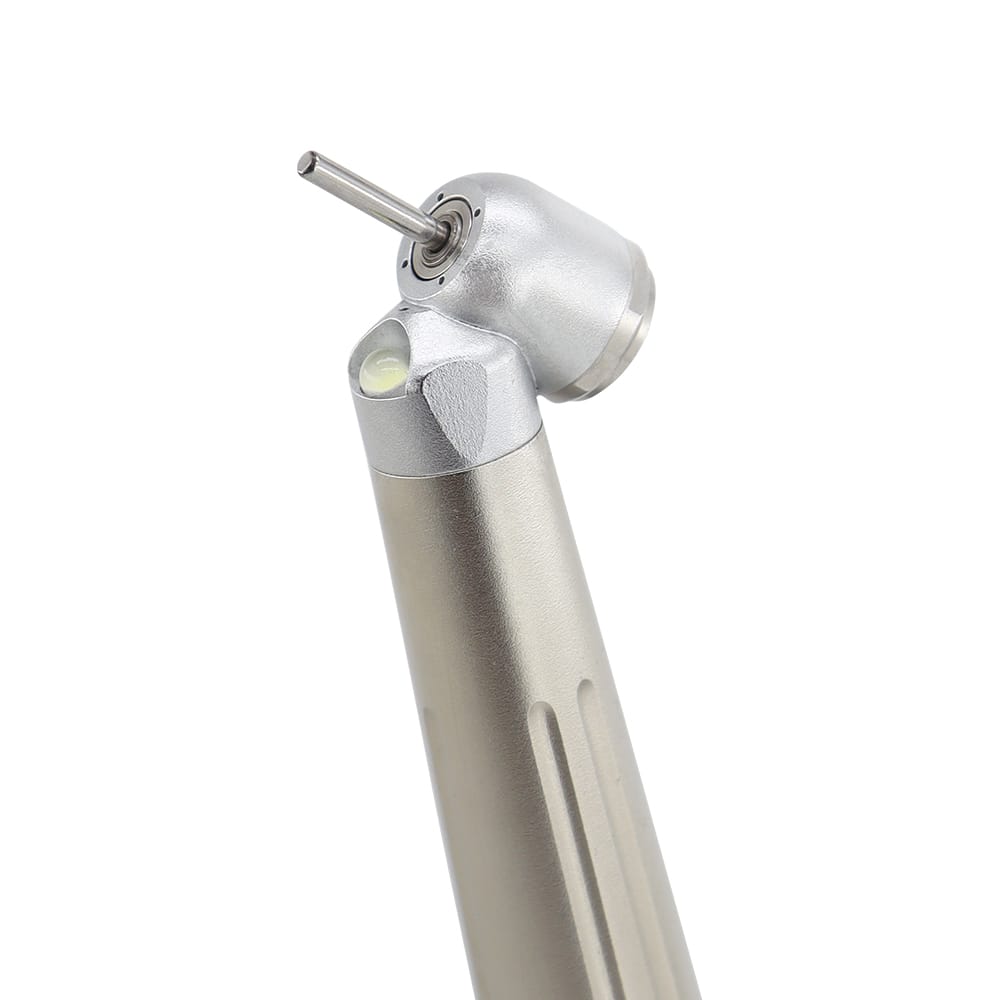

The LED illumination system is integrated into the handpiece neck and activates automatically when the air supply engages. Light is directed precisely toward the bur tip, placing the illumination source at the point of use rather than relying on external overhead lighting that is inevitably obstructed by the handpiece body. This is especially significant in a mini head configuration used at a 45-degree angle in the posterior region, where the combination of head geometry, limited mouth opening, and restricted approach angle creates the most demanding lighting conditions in routine dental practice. The single-jet water spray delivers targeted cooling to the cutting zone, while the rear exhaust channels spent air away from the field without disturbing the patient.

---

Clinical Practice of the 45° Mini Titanium-Coated LED High-Speed Handpiece

1. Pre-Operative Setup

• Inspect the handpiece packaging and confirm the titanium-coated surface shows no visible damage or delamination before use.
• Connect via the 2-hole or 4-hole interface and confirm air pressure is within 0.22–0.25 MPa.
• Install the appropriate bur using the push-button release and confirm secure chuck engagement before activation.
• Run the handpiece unloaded for 5–10 seconds to verify smooth turbine rotation, LED output, cooling water flow, and rear exhaust function.

2. Intraoperative Management

• Use the LED illumination to maintain real-time visibility of cavity margins, remaining dentin thickness, and caries removal progress — particularly valuable when working at depth in the posterior region where the mini head and 45-degree angle create the most shadow-prone geometry.
• Leverage the mini head advantage in cases with limited mouth opening, narrow arches, or deep posterior preparations; combine the compact head profile with appropriate patient head positioning to optimize the bur approach angle.
• Maintain light, intermittent contact between bur and tooth surface throughout cutting; avoid sustained pressure that can overheat the pulp or stall the turbine.
• Confirm the single-jet cooling spray remains accurately aimed at the cutting site; adjust patient positioning if the spray appears to miss the contact zone.
• Monitor operating noise throughout the procedure; normal operation should remain ≤60 dB. Abnormal vibration or increased sound requires immediate handpiece retirement.

3. Post-Operative Maintenance

• Remove the bur immediately after the procedure using the push-button release.
• Lubricate the handpiece internally per the manufacturer’s protocol before every sterilization cycle.
• Sterilize in a Class B autoclave at 135°C. Do not use chemical sterilization agents, which are incompatible with the titanium coating and may damage the LED assembly and internal seals.
• After sterilization, inspect the titanium surface and LED lens for scale or discoloration; clean gently with a soft cloth before storage.

---

The Function of the 45° Mini Titanium-Coated LED High-Speed Handpiece

The 45° Mini Titanium-Coated LED High-Speed Handpiece represents the most clinically complete configuration within the 45-degree mini handpiece range: it combines the access geometry of a 45-degree angle, the space advantage of a mini head, and the illumination benefit of an integrated LED in a single instrument.

Without LED illumination, working with a mini head at a 45-degree angle in the posterior region presents a significant visibility challenge. The compact head reduces clearance for light to reach the operative site from above, and the 45-degree approach angle means the handpiece body itself frequently crosses the path of overhead operatory lighting. The integrated LED resolves this directly by placing the light source at the instrument tip, ensuring that visibility is never dependent on overhead light positioning or patient cooperation in maintaining mouth opening.

Compared to the non-LED Mini Titanium-Coated variant, this model is the preferred choice for any case where depth of field, restricted access, and visibility are simultaneously limiting factors — which describes the majority of complex posterior restorative procedures.

---

Important Notes for Using the 45° Mini Titanium-Coated LED High-Speed Handpiece

1. Always confirm air supply pressure is within 0.22–0.25 MPa before operation. Pressure outside this range compromises both cutting performance and LED activation stability, as the LED circuit is powered by the air-driven system.
2. Use only burs with a shank diameter of Φ1.595–1.600 mm. Out-of-tolerance burs generate excessive vibration and risk chuck damage — particularly critical in a mini head where internal component tolerances are tighter than in standard-sized handpieces.
3. Do not activate the handpiece without a bur properly installed. Unloaded turbine operation at maximum RPM accelerates bearing wear and rotor imbalance.
4. Operate the push-button bur release only after the turbine has fully stopped. Bur changes during spin-down risk chuck damage and unexpected bur ejection.
5. Lubricate before every sterilization cycle without exception. Insufficient lubrication is the leading cause of premature turbine failure and is particularly critical in mini head designs where internal component clearances are reduced.
6. Sterilize at 135°C autoclave only. Chemical cold sterilization solutions are incompatible with the titanium coating and will degrade internal seals and the LED assembly over time.
7. Inspect the titanium-coated body and LED lens after each sterilization cycle. Surface pitting, coating delamination, or lens discoloration are grounds for handpiece retirement or lens cleaning respectively.
8. Pay particular attention to the mini head connection joint during post-sterilization inspection — the compact geometry concentrates mechanical stress at the head-neck junction, and any visible cracking or loosening requires immediate handpiece retirement.
9. Clean the LED lens gently with a soft cloth after each sterilization cycle to maintain optimal light output; never use abrasive materials on the lens surface.
