Disposable Vented Evacuator Tips — Straight Dental Surgical Aspirator Tips (Bag of 100)

Description

Disposable Vented Evacuator Tips — Straight Dental Surgical Aspirator Tips (Bag of 100)

• Application: high-volume evacuation and surgical aspiration in general, restorative, and oral-surgery dental procedures

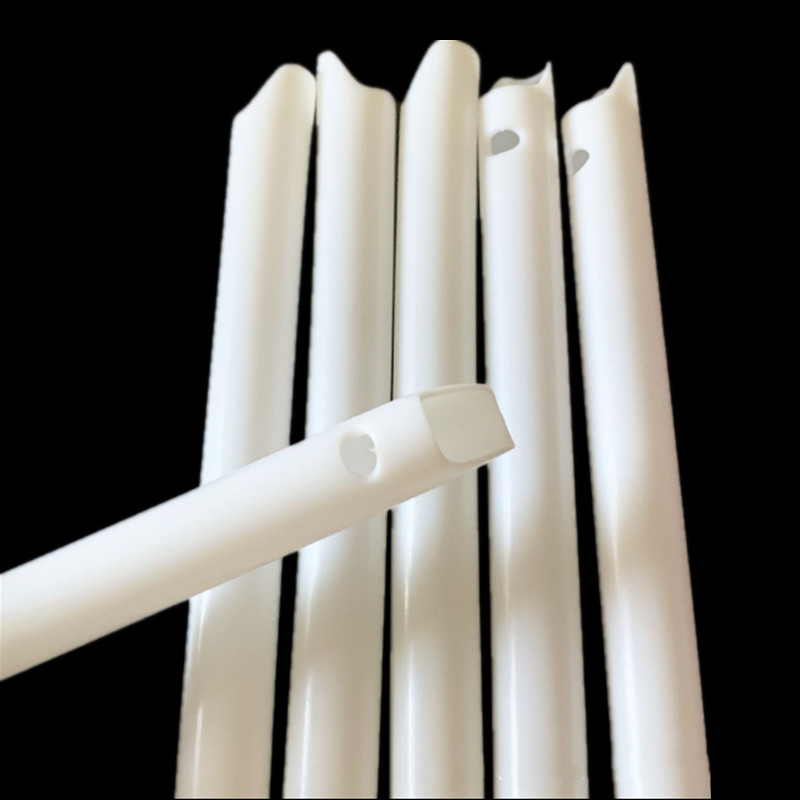

• Straight design with a notched (scalloped) working end and side vent hole to prevent soft-tissue lock-on
• Vent maintains continuous airflow and steady suction even when the tip contacts mucosa
• Single-use, disposable — supports chairside infection control

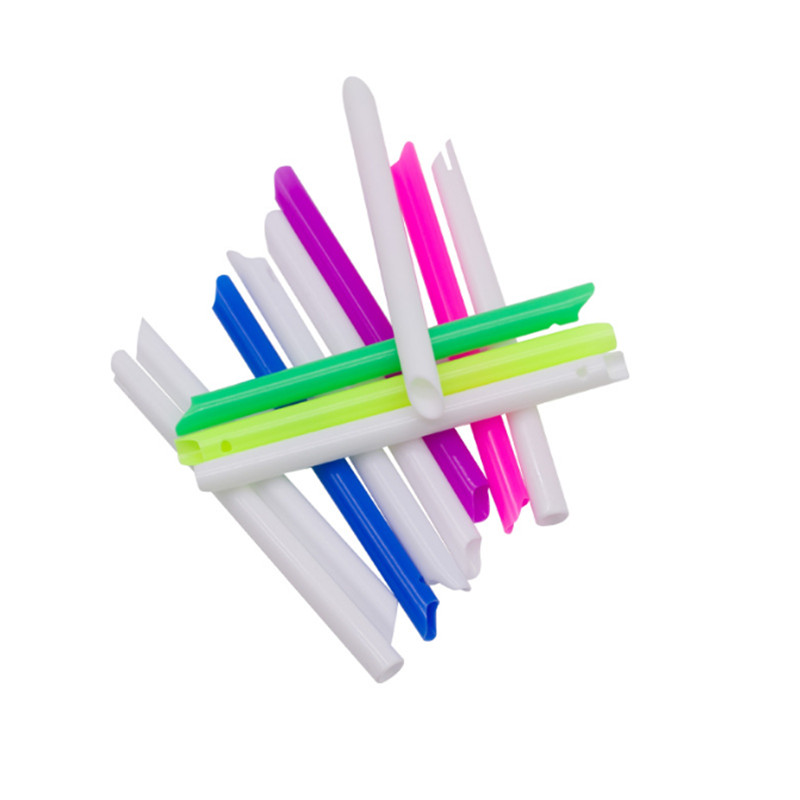

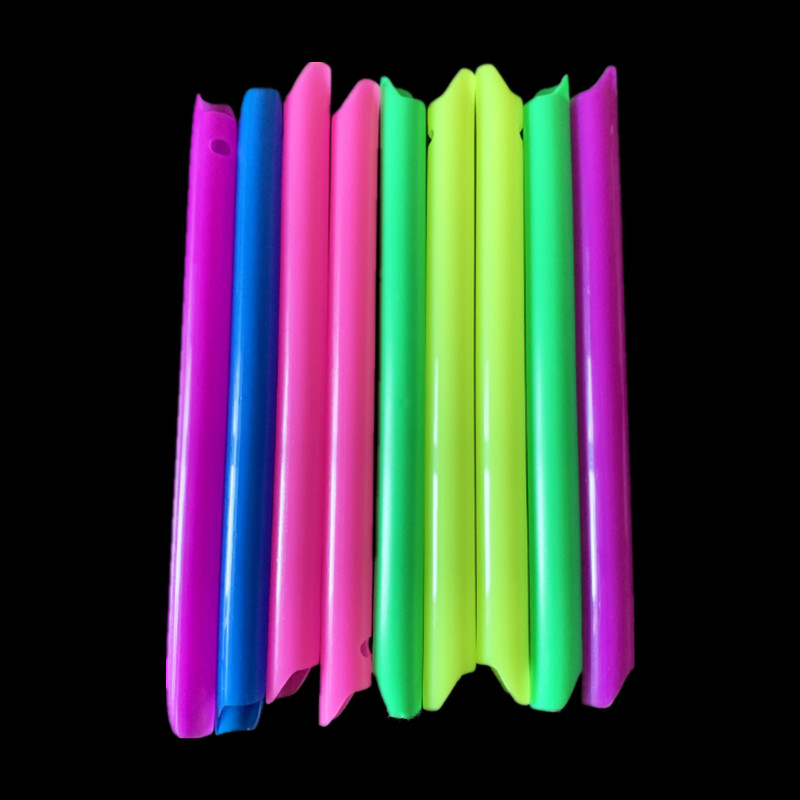

• Available in white and bright neon colors (purple, blue, pink, green, yellow)
• Two lengths: 3″ and 6″ (approx. 76 mm / 152 mm)
• Fits standard dental high-volume evacuator (HVE) valves

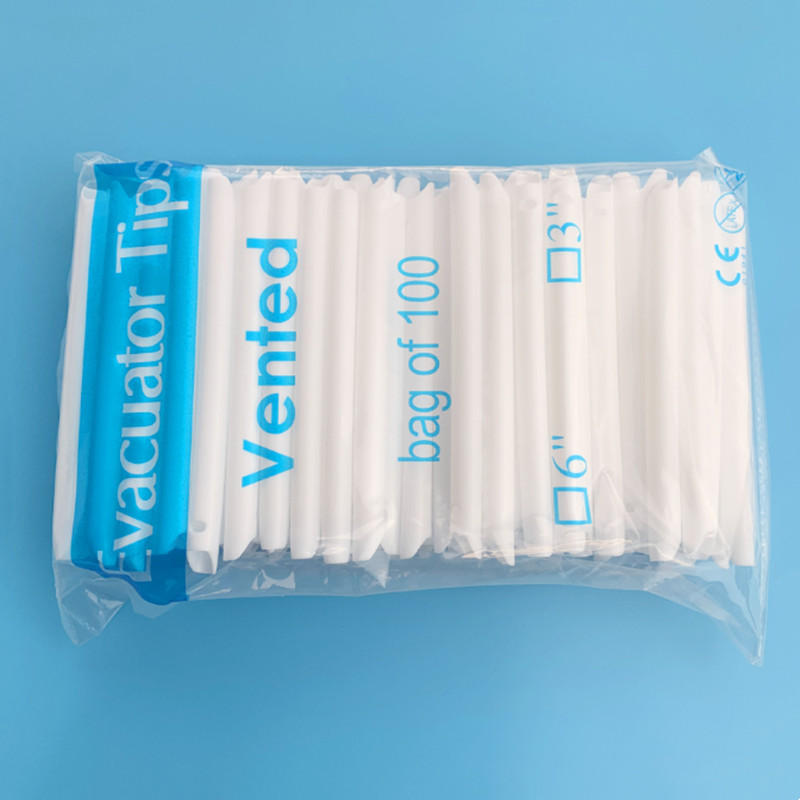

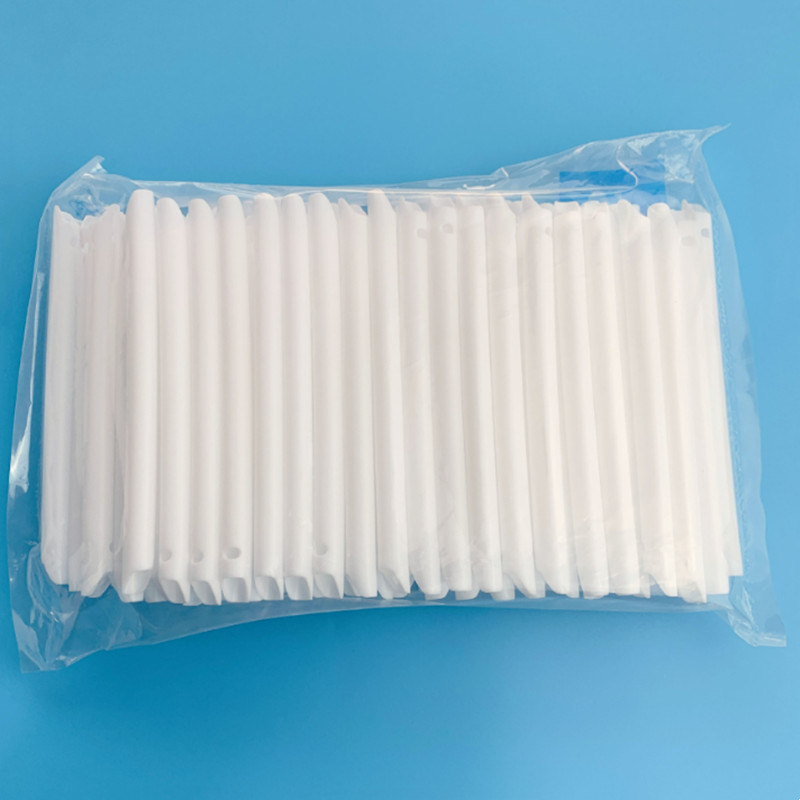

• Packaged in a sealed bag of 100; CE-marked
• OEM / ODM, custom color, length, and bag count available

[Send Inquiry] → https://dentalinktech.com/Contact-Us/

---

Description

The Disposable Vented Evacuator Tip is a straight dental surgical aspirator tip used to remove saliva, blood, irrigation water, and debris from the oral cavity during dental treatment. Its defining feature is the vented design — a notched, scalloped working end combined with a small side vent hole — which keeps the suction lumen open even when the tip is pressed against the cheek, tongue, or floor of the mouth, preventing the painful “lock-on” that can occur with plain open-ended tips.

Molded from medical-grade plastic and supplied for single use, the tip connects directly to a standard high-volume evacuator (HVE) valve and is discarded after each patient to support chairside infection control. It is offered in two lengths (3″ and 6″) and in white as well as a range of bright neon colors, and is packaged in a sealed bag of 100 for clinic dispensing. As a CE-marked disposable, it suits dental clinics, hospital dental departments, oral-surgery practices, and dental supply distributors.

---

Feature

• The notched, scalloped working end keeps the suction lumen open against soft tissue, so the tip continues to evacuate fluid even when it rests against the cheek, tongue, or mucosa.
• The side vent hole bleeds in air to prevent a full vacuum seal forming against tissue — eliminating tissue lock-on and the discomfort and trauma it can cause.
• The straight, rigid body provides controlled, predictable placement for high-volume evacuation of water spray, blood, and debris during cutting and surgical procedures.
• Molded from smooth medical-grade plastic with no sharp edges, for atraumatic intraoral contact.
• Single-use and disposable, eliminating the reprocessing burden of reusable metal tips and reducing cross-contamination risk.
• Fits standard HVE valve fittings for direct, tool-free connection.
• Available in white and bright neon colors and in 3″ and 6″ lengths to suit clinic preference and procedure type.
• Bulk bag-of-100 packaging supports high-throughput clinic use; OEM/ODM color, length, and packaging available.

---

Disposable Vented Evacuator Tips — Specifications

---

Working Principle

The evacuator tip works as the disposable intake of the dental unit’s high-volume suction system. When inserted into the HVE valve and the valve is opened, negative pressure draws saliva, blood, water spray, and debris through the tip’s lumen and away from the operative field.

The vented design solves the central problem of plain open-ended tips: when an unvented tip is pressed flat against soft tissue, it forms a complete seal, the full vacuum acts on the tissue, and the mucosa is pulled into and held against the opening — causing discomfort, petechiae, and interrupted suction. The notched, scalloped working end keeps part of the lumen open against tissue, and the side vent hole admits a controlled amount of air to break any developing seal. Together they maintain steady airflow and continuous evacuation while the tip rests against the cheek, tongue, or floor of the mouth, allowing single-handed retraction and suction without trauma.

---

Clinical Use of the Disposable Vented Evacuator Tip

1. Before Use

• Confirm the bag and tip are intact; do not use a tip that is cracked, deformed, or contaminated.
• Insert the tip fully into the high-volume evacuator valve and confirm a secure fit.
• Select the 3″ or 6″ length appropriate to the procedure and patient.

2. During Use

• Position the tip to evacuate water spray and fluid near the operative site, using the notched end and vent to rest the tip against tissue for retraction without lock-on.
• Maintain continuous evacuation during high-spray procedures (cutting, surgery, ultrasonic scaling) to keep the field clear and reduce aerosols.
• Reposition as needed; the vent allows the tip to be moved along tissue without interrupting suction.

3. After Use

• Remove the tip from the valve after each patient and discard it; do not reuse.
• Run the suction lines through the clinic’s post-patient flushing protocol.
• Dispose of used tips as clinical / medical waste in accordance with local regulations.

---

The Function of the Disposable Vented Evacuator Tip

The Disposable Vented Evacuator Tip provides reliable, atraumatic high-volume evacuation for everyday dental and oral-surgery procedures. By combining a notched working end with a side vent, it delivers the core clinical benefit of a vented tip — continuous suction without tissue lock-on — while remaining a low-cost, single-use disposable that removes the cleaning and sterilization burden of reusable tips and lowers cross-contamination risk.

With two lengths, a choice of white and bright neon colors, standard HVE compatibility, and bulk bag-of-100 packaging, it is a practical consumable for dental clinics, hospital dental departments, and oral-surgery practices, and a strong catalog item for dental distributors. Full OEM/ODM customization of color, length, and packaging is available for private-label programs.

---

Important Notes for Using the Disposable Vented Evacuator Tip

1. Single-use only — never reuse or reprocess; one tip per patient.
2. Non-sterile product; do not use where a sterile aspirator is clinically required.
3. Inspect each tip before use and discard any that is cracked, deformed, or contaminated.
4. Do not use if the package is damaged or open.
5. Confirm a secure connection to the HVE valve before applying suction.
6. Keep the tip away from the back of the throat to avoid triggering a gag reflex or aspiration.
7. Store sealed, at room temperature, away from sunlight, and keep dry.
8. Dispose of used tips as clinical / medical waste in accordance with local regulations.
