MAX Color Series LED High-Speed Handpiece

Description

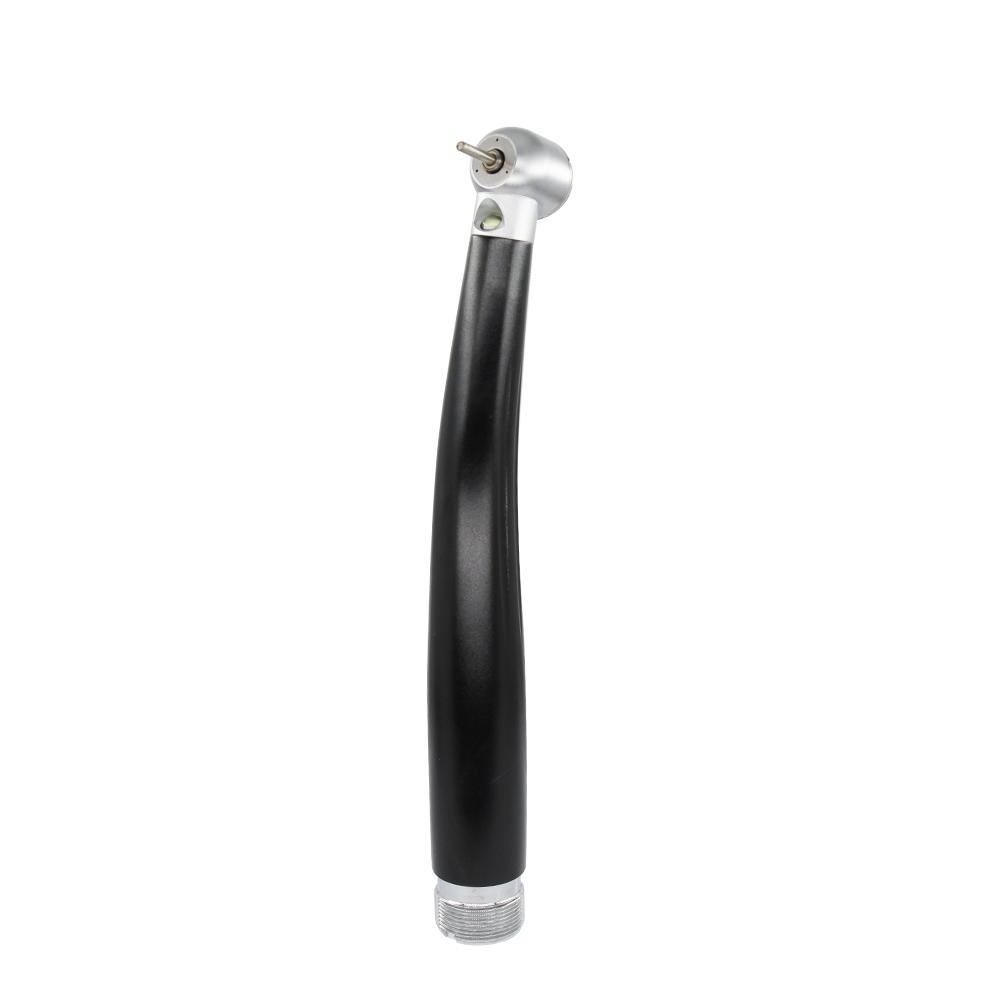

MAX Color Series LED High-Speed Handpiece

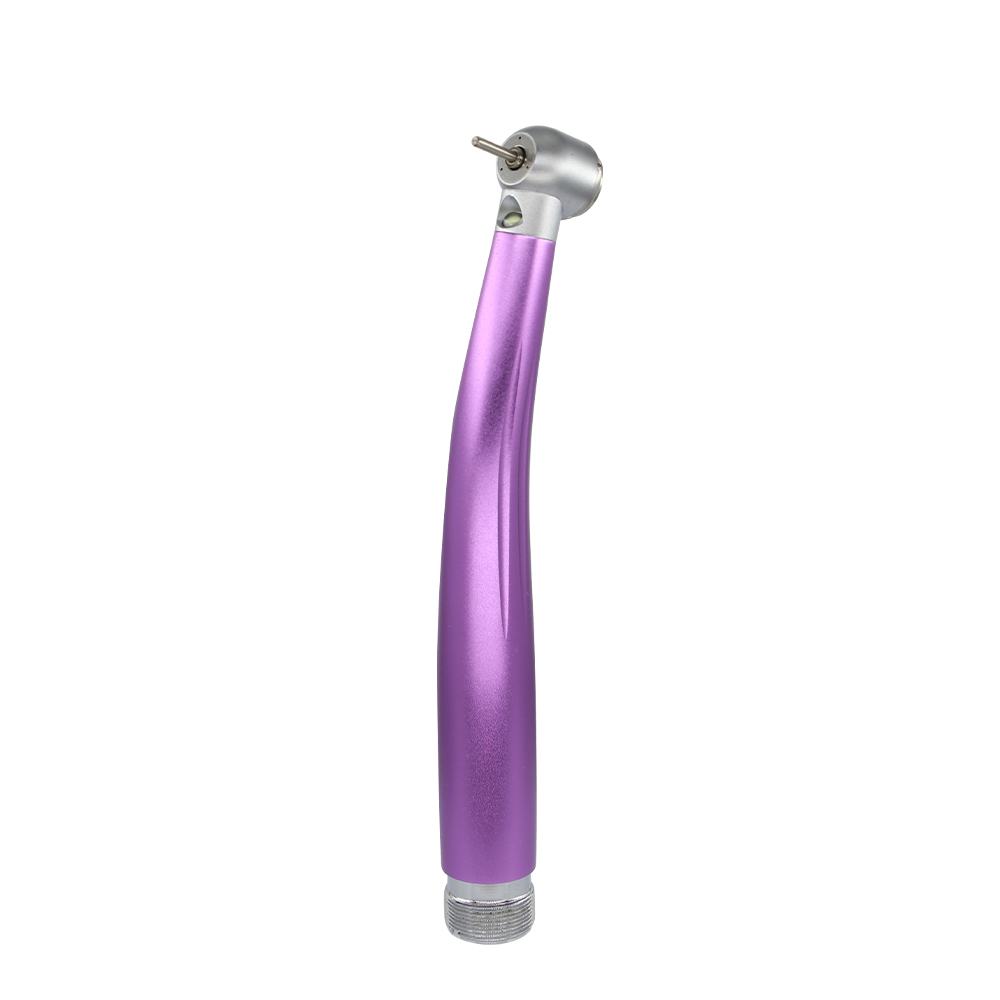

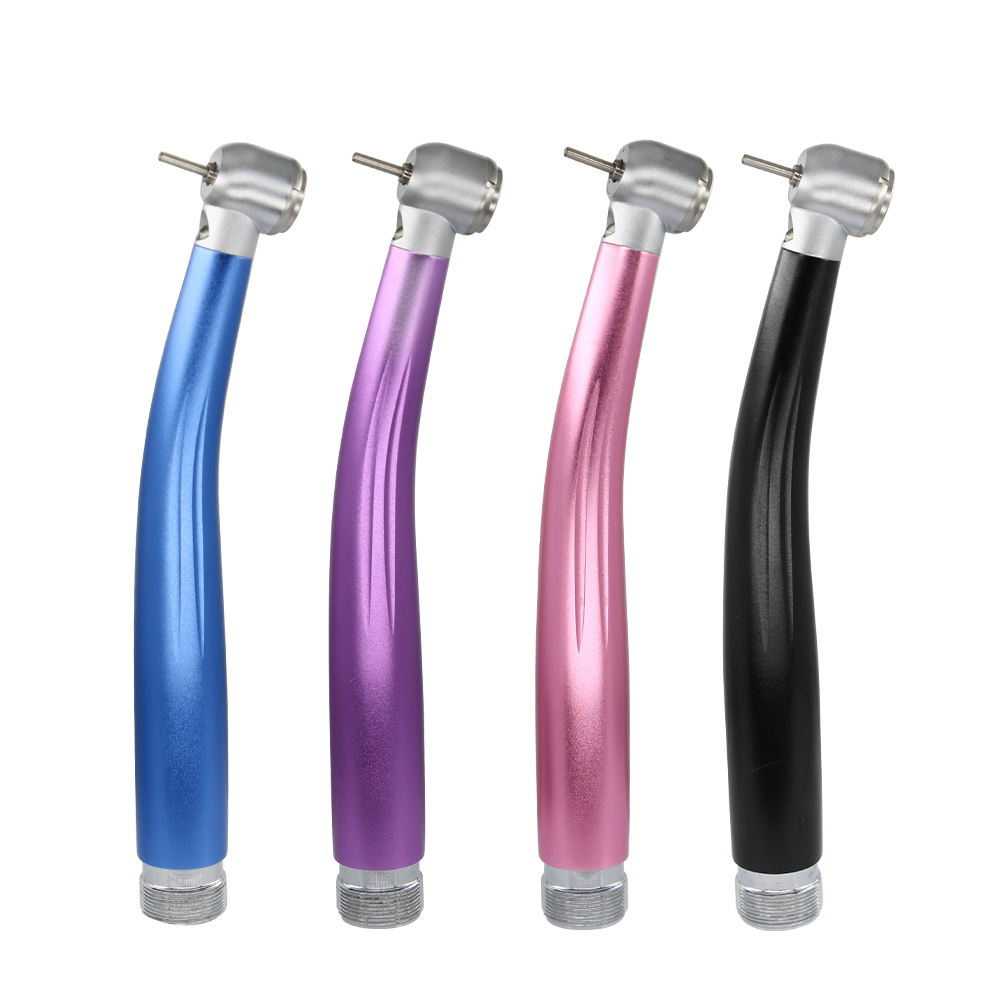

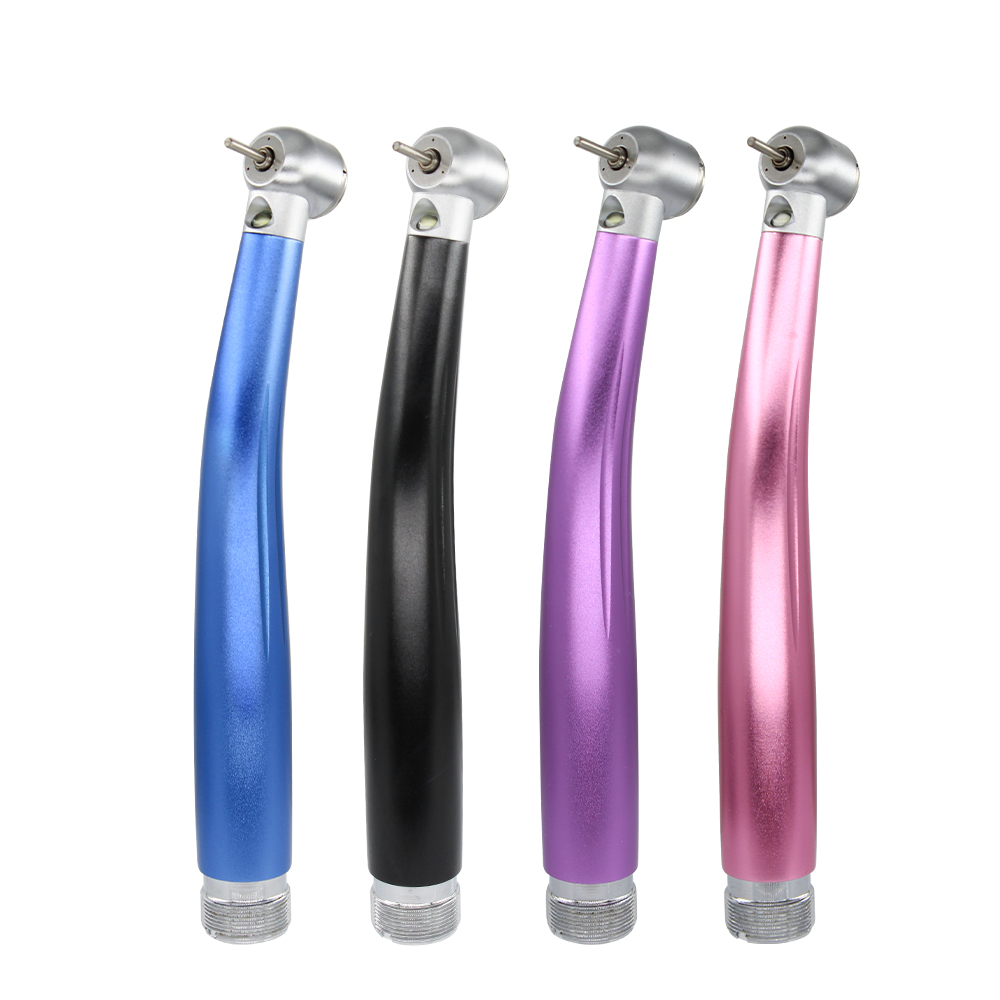

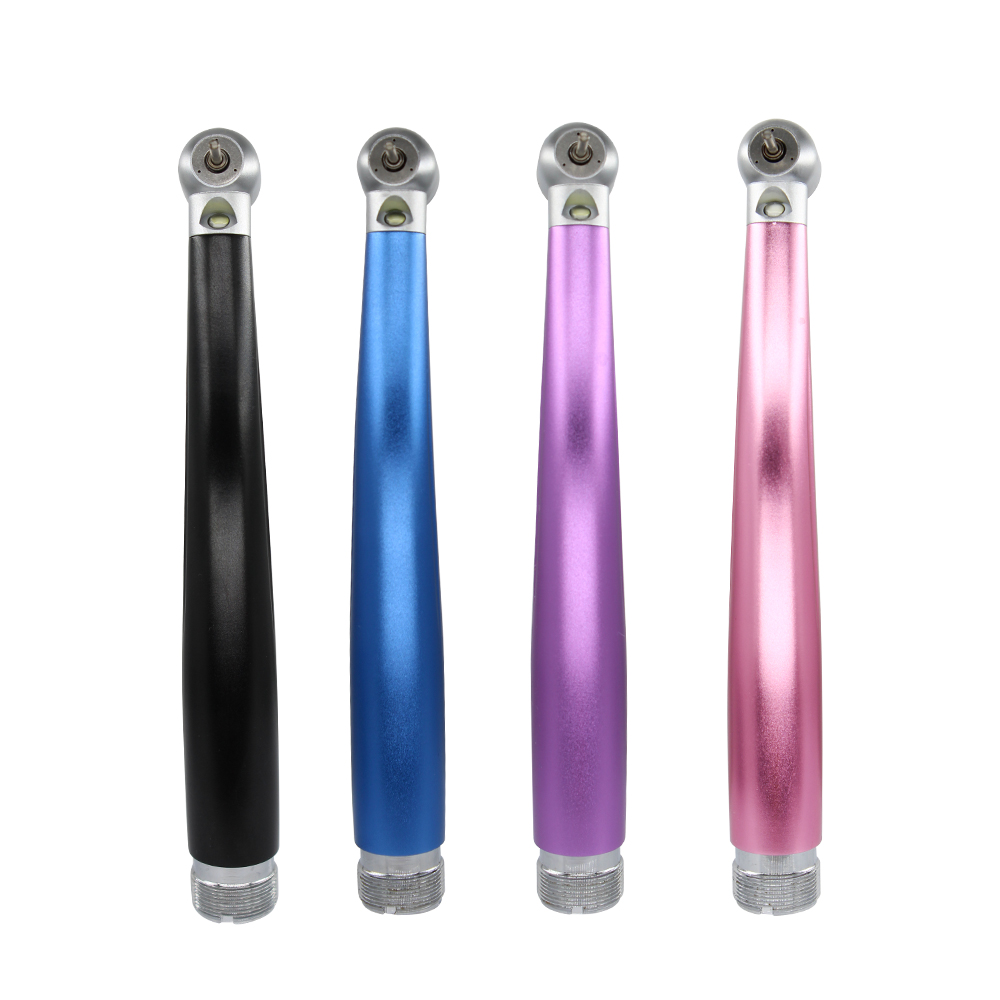

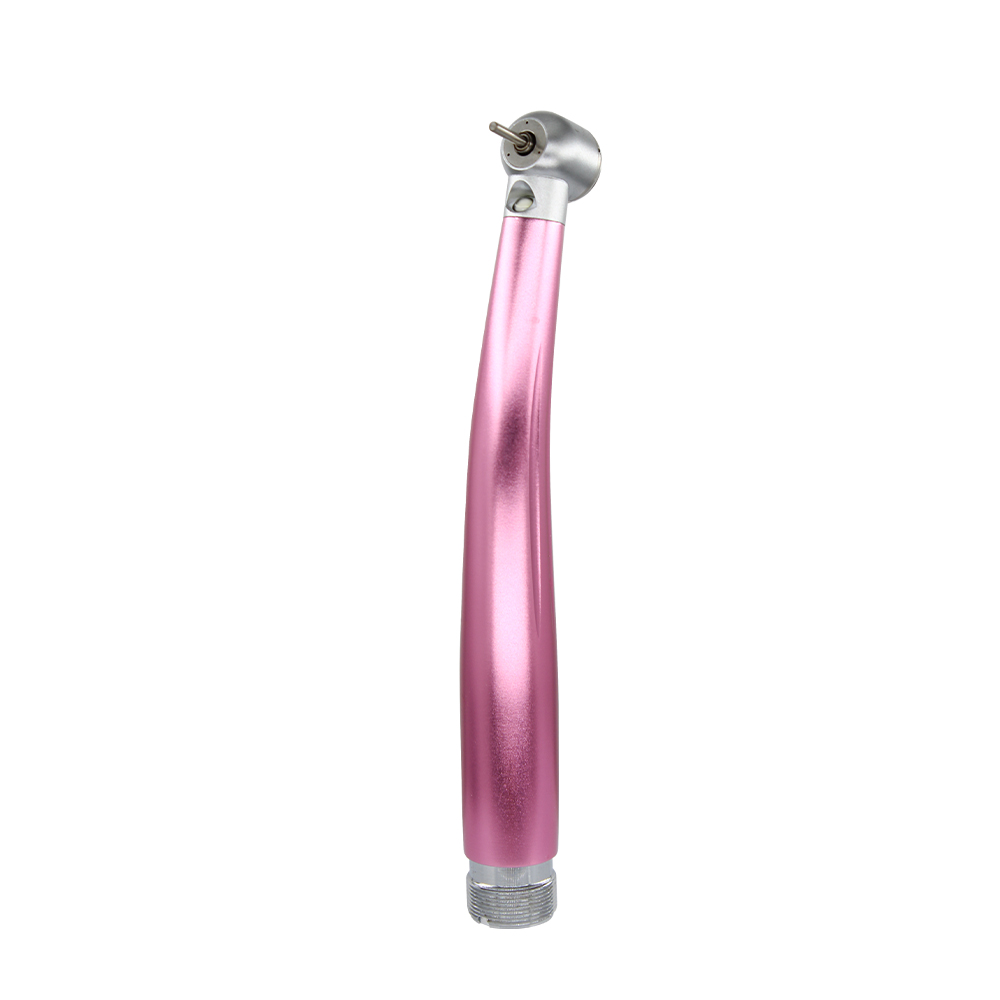

• Available in 4 colors: Blue, Black, Pink, Purple — for operatory personalization and instrument identification
• Double arc-line grip pattern for secure ergonomic control
• Built-in LED illumination for shadow-free surgical visibility
• Replaceable cartridge turbine for extended service life and cost-effective maintenance
• Three-point water spray cooling for comprehensive heat dissipation
• Push-button bur release for fast, one-handed bur changes
• Full metal body construction for durability and long-term reliability

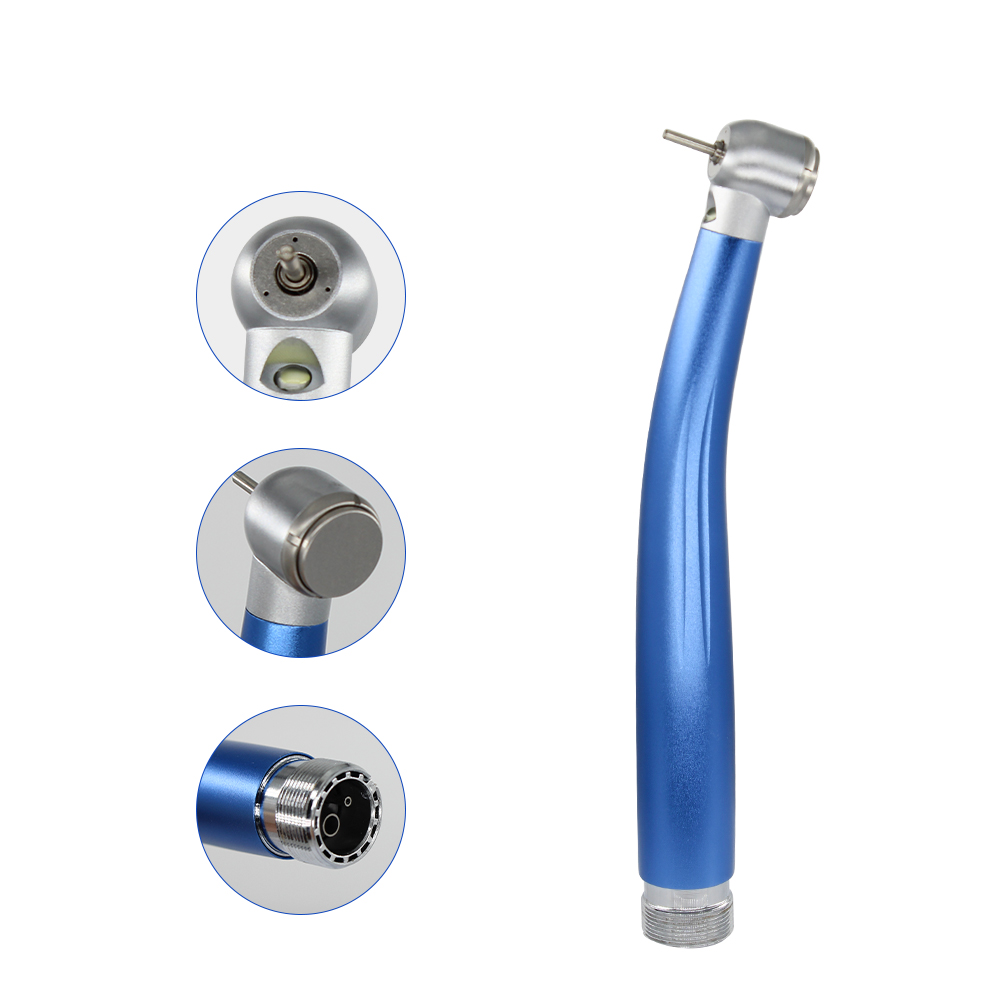

• Available in 2-hole and 4-hole connection interfaces
• Compatible with autoclave sterilization at 135°C

[Send Inquiry]

---

Description

The MAX Color Series LED High-Speed Handpiece brings together clinical performance and operatory personalization in a single instrument, available in four anodized color options — Blue, Black, Pink, and Purple — each delivering identical clinical specification in a distinctive visual identity.

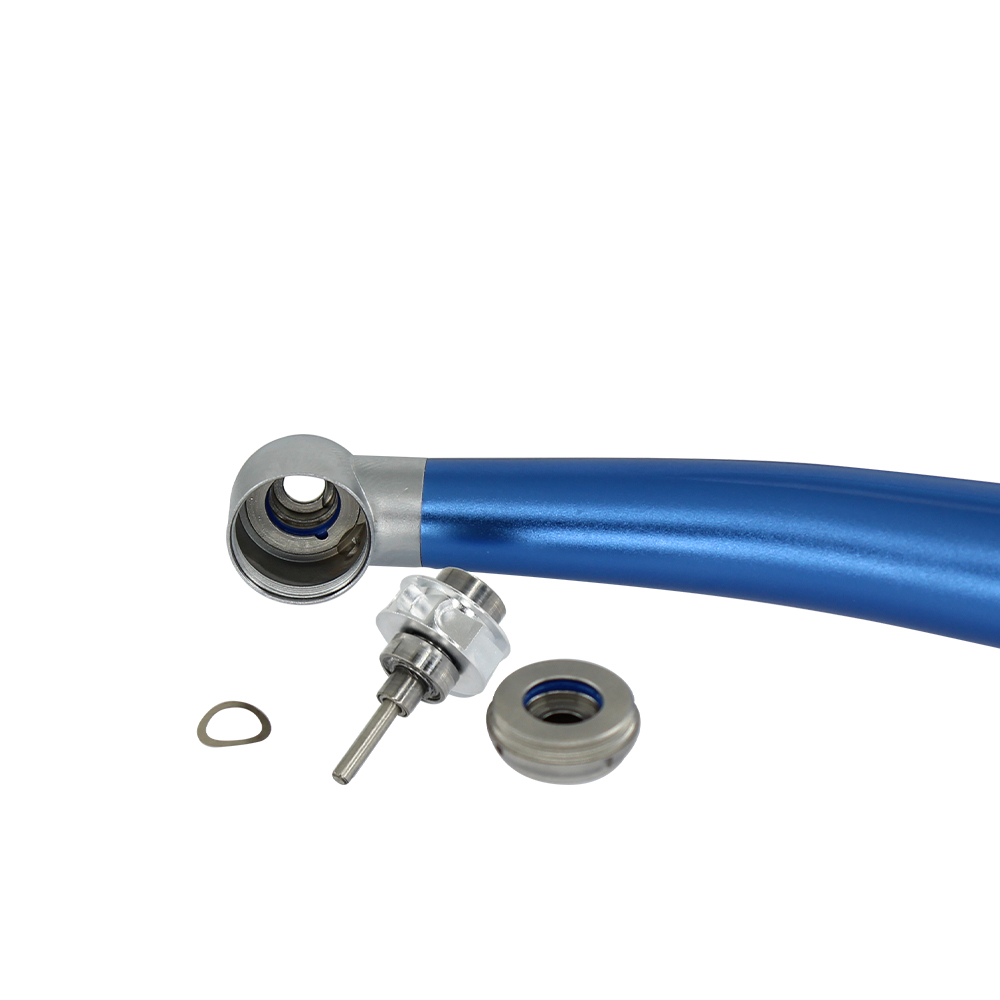

Beyond aesthetics, the Color Series offers two meaningful clinical advantages over standard handpieces. First, the replaceable cartridge turbine — visible in the exploded component images — allows the entire rotating assembly to be removed and replaced as a self-contained unit when bearings or chuck components reach end of service life, extending overall instrument service life and significantly reducing maintenance cost compared to handpieces that must be fully replaced. Second, the integrated LED light source activates automatically with the air supply, placing a focused beam of light directly at the bur tip and eliminating the shadow limitations of overhead operatory lighting throughout the procedure. The three-point water spray cooling system delivers simultaneous water coverage from three nozzle positions around the head, providing comprehensive heat dissipation across the cutting zone. Operating at 320,000–350,000 RPM at 0.22–0.25 MPa, the MAX Color Series delivers reliable, high-performance cutting with a visual identity that sets it apart from every other handpiece on the tray.

---

Feature

• Available in four anodized color options — Blue, Black, Pink, and Purple — enabling practice-wide instrument identification by clinician, operatory, or procedure type, and bringing a distinctive aesthetic to the clinical environment that patients notice and appreciate.
• The replaceable cartridge turbine design allows the rotor, bearings, and chuck mechanism to be removed and replaced as a single precision-balanced unit without retiring the handpiece body, substantially extending overall instrument service life and reducing the total cost of maintaining a high-performance handpiece fleet.
• The integrated LED light source activates automatically with the air supply, directing a bright, focused beam at the bur tip and eliminating the shadow artifacts caused when the handpiece body blocks overhead operatory lighting — ensuring consistent, position-independent illumination throughout every procedure.
• The three-point water spray cooling system delivers simultaneous water coverage from three nozzle positions distributed around the head, providing more uniform heat dissipation across the cutting zone than single or twin-jet configurations, reducing the risk of localized thermal buildup during extended cutting sequences.
• The push-button bur release mechanism enables fast, reliable, tool-free bur changes with one hand, maintaining procedural efficiency in high-throughput clinical environments.
• The full metal body provides exceptional structural rigidity and resistance to deformation, ensuring consistent performance across hundreds of high-temperature autoclave sterilization cycles.
• Compatible with both 2-hole and 4-hole connection standards for broad compatibility with mainstream dental unit interfaces.

---

MAX Color Series LED High-Speed Handpiece — Specifications

---

Working Principle

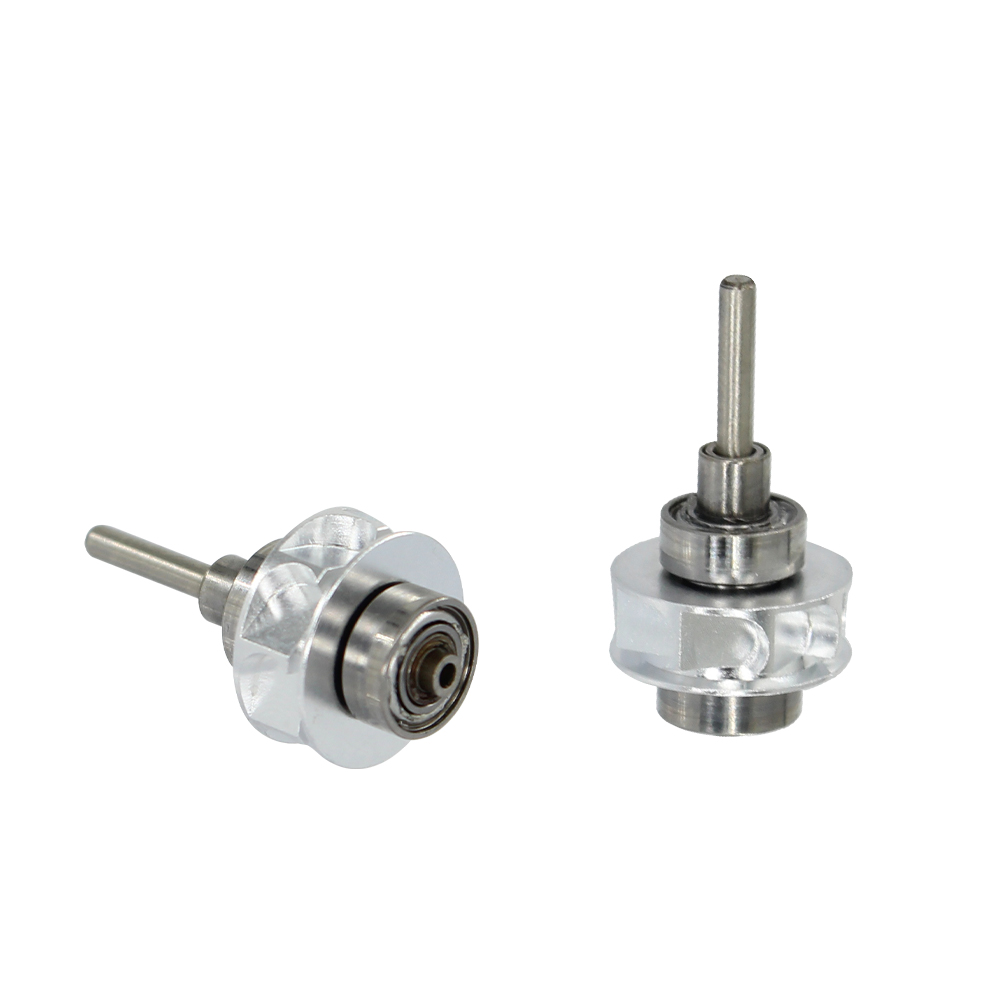

The MAX Color Series LED High-Speed Handpiece operates on a pneumatic turbine principle. Compressed air enters through the connection interface at 0.22–0.25 MPa, driving the replaceable cartridge turbine rotor to achieve rotational speeds of 320,000–350,000 RPM. The cartridge design encapsulates the rotor, bearings, and push-button chuck as a self-contained, precision-balanced unit. When the cartridge reaches end of service life — indicated by increased operating noise, vibration, or reduced bur concentricity — it can be extracted from the handpiece body and replaced with a new unit, restoring factory-level turbine performance without replacing the colored body.

The three-point water spray system distributes water simultaneously from three nozzle positions around the head, creating a triangulated cooling coverage pattern that reduces thermal asymmetry during directionally varied cutting sequences. The LED circuit activates with air flow, placing light directly at the operative site for the duration of the procedure. Together, the three-point spray and LED ensure that both thermal management and operative visibility are maintained throughout complex preparations without requiring any manual adjustment.

---

Clinical Practice of the MAX Color Series LED High-Speed Handpiece

1. Pre-Operative Setup

• Select the color variant assigned to the operatory, clinician, or procedure type per the practice’s instrument identification protocol.
• Inspect the handpiece body, LED lens, and all three spray nozzles before use; confirm no visible damage or nozzle blockage.
• Connect via the 2-hole or 4-hole interface and confirm air pressure is within 0.22–0.25 MPa.
• If a cartridge replacement was recently performed, run the handpiece unloaded for 30 seconds to confirm correct cartridge seating, smooth rotation, balanced three-point spray output, and LED function before intraoral use.
• Install the appropriate bur using the push-button release and confirm secure chuck engagement.

2. Intraoperative Management

• Use the LED illumination continuously to maintain real-time visibility of cavity margins, preparation depth, and residual caries — the consistent, position-independent illumination is particularly valuable during complex preparations where the handpiece body frequently crosses the path of overhead lighting.
• Monitor all three spray streams for symmetric, consistent output throughout the procedure; any asymmetry indicates partial nozzle blockage requiring post-procedure attention.
• The color-coded body serves as an instant visual reference during multi-handpiece procedures, eliminating the need to read instrument labels when switching between instruments mid-procedure.
• Maintain light, intermittent contact between bur and tooth surface throughout cutting; avoid sustained pressure that can stall the turbine or stress the cartridge bearings.
• Monitor operating noise; cartridge bearing wear presents as increased noise or vibration that is the signal for scheduled cartridge replacement.

3. Post-Operative Maintenance

• Remove the bur immediately after the procedure using the push-button release.
• Run the handpiece for 20–30 seconds to flush water and air lines after each patient use.
• Inspect all three spray nozzles and the LED lens; flush nozzles with clean water if output is reduced, and clean the lens gently with a soft cloth.
• Lubricate the cartridge per the manufacturer’s protocol before every sterilization cycle; the cartridge bearing assembly requires its own lubrication independent of the handpiece body.
• Sterilize in a Class B autoclave at 135°C. The anodized colored body is rated for repeated high-temperature sterilization.
• When cartridge performance degrades, replace the cartridge unit rather than retiring the instrument body — preserving the colored body as a long-term asset.

---

The Function of the MAX Color Series LED High-Speed Handpiece

The MAX Color Series LED High-Speed Handpiece addresses a combination of clinical, operational, and environmental needs that single-specification handpieces cannot accommodate simultaneously.

Clinically, the replaceable cartridge turbine and three-point spray system represent the instrument’s performance core. The cartridge architecture decouples the service life of the body from the service life of the rotating assembly — a meaningful economic advantage in practices that maintain multiple handpieces per operatory. The three-point spray provides more uniform cooling than single-jet designs across the varied cutting geometries of routine restorative practice, reducing the thermal risk associated with directional spray coverage limitations.

The LED illumination resolves the persistent shadow problem in handpiece-obstructed operative fields, providing direct-source light at the bur tip that is independent of overhead light positioning or patient cooperation in maintaining mouth opening.

The color options add two layers of practical value beyond aesthetics. In multi-clinician practices, color-coded handpieces enable instant visual identification of each clinician’s instruments, reducing confusion and mix-ups during busy session changeovers. In single-clinician practices, colors can be assigned by procedure type — allowing a glance at the tray to confirm the correct instrument is in hand without reading labels. Both uses reduce cognitive load during procedures and improve instrument management efficiency in high-throughput environments.

---

Important Notes for Using the MAX Color Series LED High-Speed Handpiece

1. Always confirm air supply pressure is within 0.22–0.25 MPa. The three-point spray nozzle output and LED circuit are both calibrated for this pressure range; operation significantly outside it affects spray coverage uniformity and LED activation consistency.
2. Use only burs with a shank diameter of Φ1.595–1.600 mm. Out-of-tolerance burs compromise cartridge chuck concentricity and accelerate cartridge bearing wear.
3. Inspect all three spray nozzles before each clinical session. Partial blockage of any nozzle breaks the triangulated cooling envelope and creates localized thermal risk at the cutting site.
4. Monitor cartridge performance regularly. Replace the cartridge when operating noise exceeds ≤60 dB, vibration increases, or bur concentricity visibly degrades — a worn cartridge not only reduces cutting quality but also compromises chuck sealing. Timely cartridge replacement is the primary maintenance action that preserves the handpiece body as a long-term instrument.
5. Lubricate the cartridge before every sterilization cycle without exception. Inadequately lubricated cartridges fail prematurely and may seize during autoclaving, potentially damaging the handpiece body.
6. Do not use abrasive cleaning agents or abrasive cloths on the anodized colored body surface. Abrasion removes the anodized layer and exposes the underlying metal to accelerated corrosion; clean with soft cloths and non-abrasive instrument cleaning solutions only.
7. Sterilize at 135°C autoclave only. Chemical sterilization agents are incompatible with the anodized finish, LED assembly, and cartridge seals; chemical exposure can cause color fading, seal degradation, and LED component damage simultaneously.
8. Inspect the anodized surface after each sterilization cycle. Surface discoloration, pitting, or coating degradation that does not resolve with cleaning indicates chemical compatibility issues or coating wear; address through protocol review or handpiece retirement as appropriate.
9. Clean the LED lens gently with a soft cloth after each sterilization cycle to maintain optimal light output; never use abrasive materials on the lens surface.
