MAX LED Quick-Disconnect High-Speed Handpiece

Description

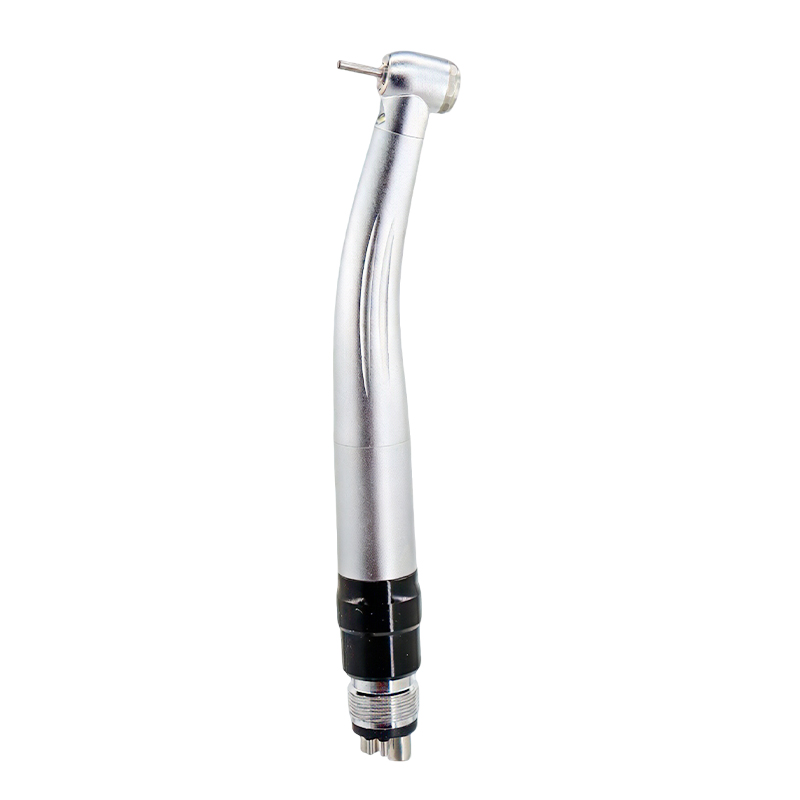

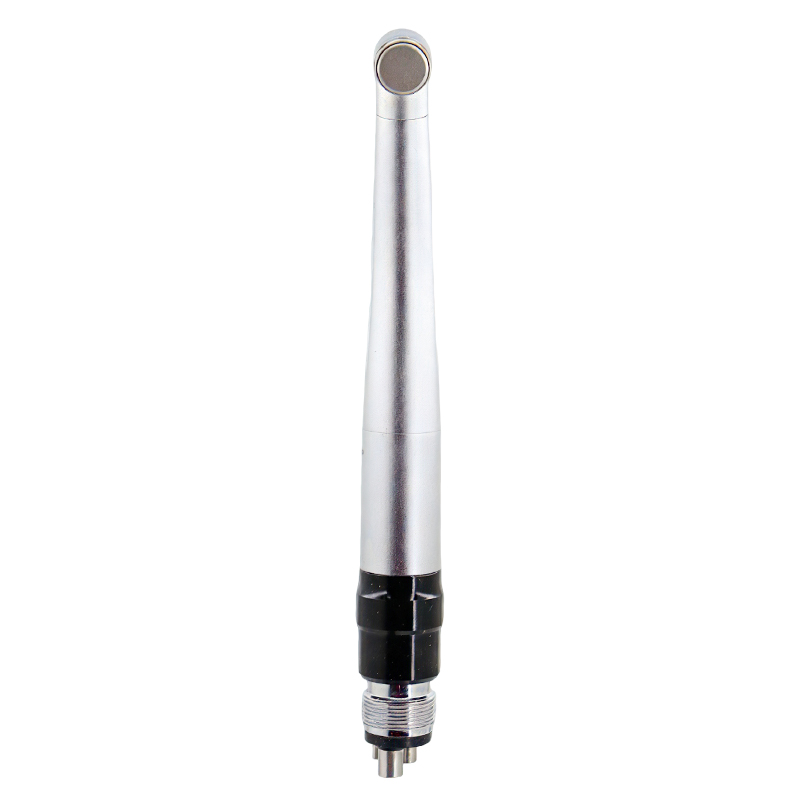

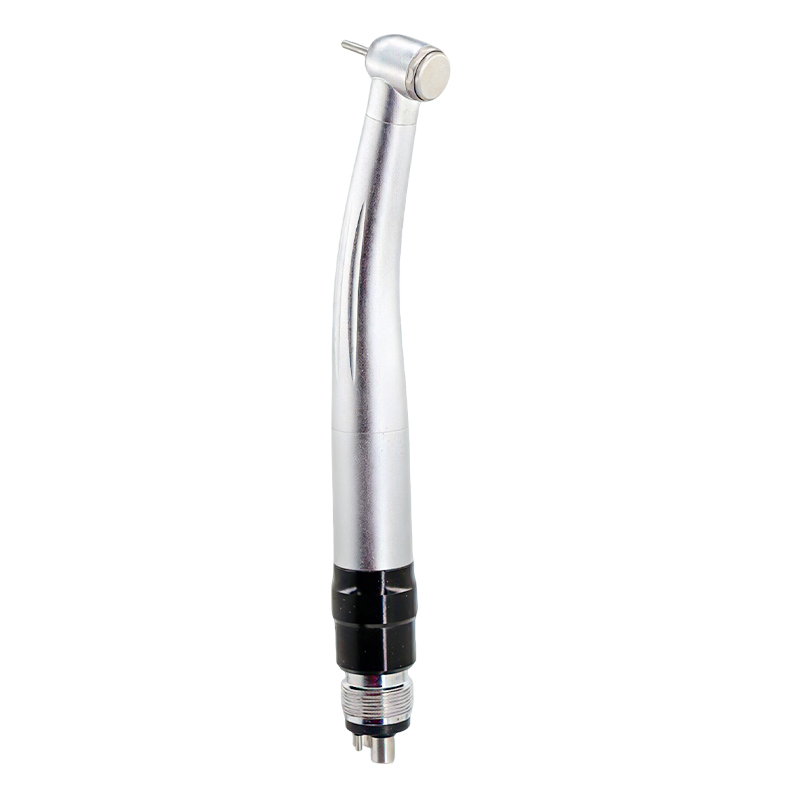

MAX LED Quick-Disconnect High-Speed Handpiece

• Double arc-line grip pattern for secure ergonomic control
• Quick-disconnect coupling for tool-free, instant handpiece connection and removal
• Built-in LED illumination for shadow-free surgical visibility
• 3-point anti-suckback system for effective infection control
• Single-jet water cooling with precision-directed spray
• Full metal body construction for durability and long-term reliability
• Push-button bur release for fast, one-handed bur changes
• Available in 2-hole and 4-hole connection interfaces
• Compatible with autoclave sterilization at 135°C

[Send Inquiry]

---

Description

The MAX LED Quick-Disconnect High-Speed Handpiece is a clinically versatile instrument engineered around three integrated advantages: the chairside efficiency of a quick-disconnect coupling system, the operative visibility of a built-in LED light source, and the infection control protection of a 3-point anti-suckback system.

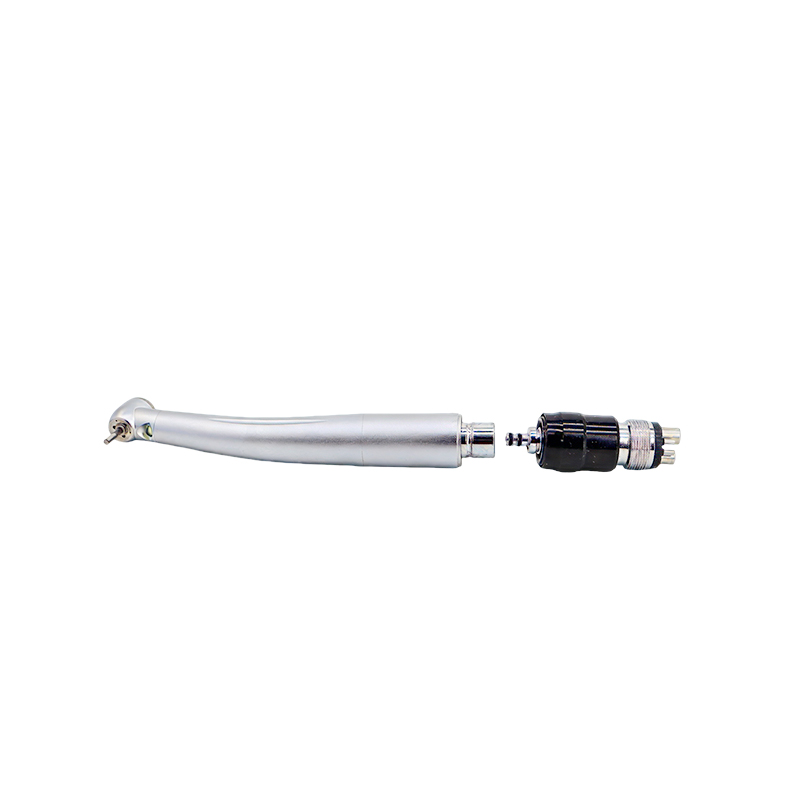

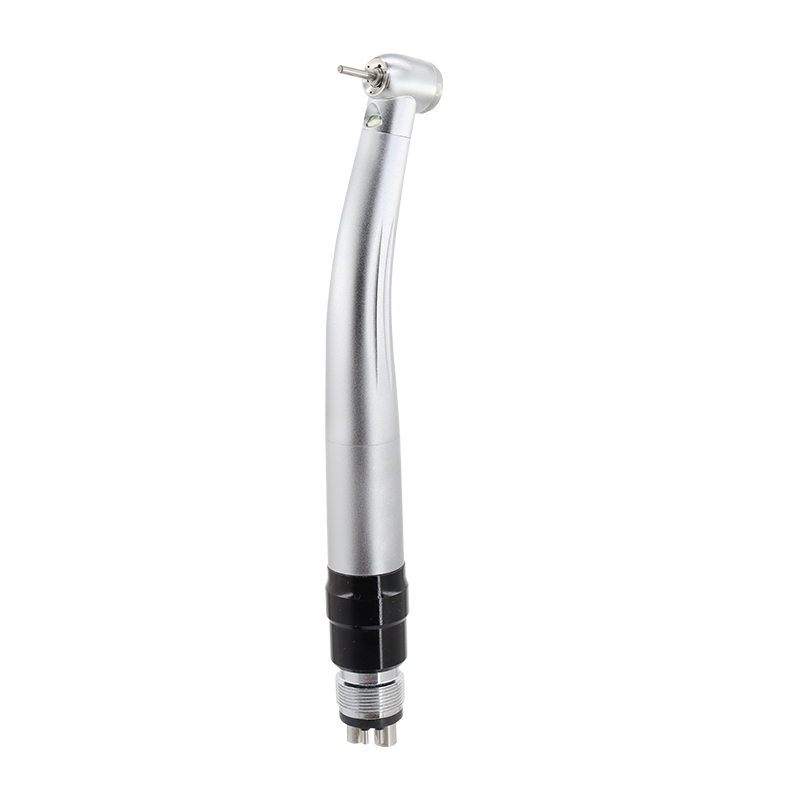

The quick-disconnect coupling — clearly visible as the distinct black collar assembly at the base of the handpiece — allows the handpiece body to be attached to and detached from the dental unit tubing connection in seconds without tools, threaded fittings, or wrench assistance. This dramatically accelerates handpiece changeovers between instruments during multi-procedure sessions and simplifies the removal of handpieces for sterilization, reducing the time and effort associated with instrument cycling in high-throughput clinical environments. The integrated LED activates automatically with the air supply, directing a focused beam of light onto the operative field at the bur tip and eliminating the shadow limitations of overhead operatory lighting. The 3-point anti-suckback system provides active protection against retrograde oral fluid aspiration into the handpiece channels at every turbine deceleration event. Constructed with a full metal body and double arc-line grip pattern, the MAX LED Quick-Disconnect operates at 320,000–350,000 RPM at 0.22–0.25 MPa, delivering reliable cutting performance across a full range of restorative and preparatory procedures.

---

Feature

• The quick-disconnect coupling enables tool-free, instant attachment and removal of the handpiece from the dental unit tubing — eliminating the threaded connection process of conventional handpieces and significantly accelerating instrument changeovers, sterilization cycling, and operatory turnaround between patients.
• The integrated LED light source activates automatically with the air supply, casting a bright, focused beam directly at the bur tip and eliminating the shadow artifacts caused when the handpiece body obstructs overhead operatory lighting — providing consistent, position-independent illumination throughout the procedure.
• The 3-point anti-suckback system deploys three check valves that close instantly when forward air pressure ceases, preventing the negative pressure that would otherwise draw oral fluids, saliva, blood, and microbial contaminants back through the bur chuck into the handpiece water and air channels at every turbine stop.
• Single-jet water spray delivers focused, targeted cooling at the bur-tooth interface, providing effective heat dissipation at the cutting zone with controlled water volume suited to precision restorative applications.
• The full metal body provides exceptional structural rigidity and resistance to deformation, ensuring consistent performance and dimensional stability across repeated high-temperature autoclave sterilization cycles.
• The double arc-line surface pattern delivers a secure, non-slip grip under all clinical conditions, maintaining precise tactile control throughout demanding procedures.
• Compatible with both 2-hole and 4-hole connection standards for broad compatibility with mainstream dental unit interfaces.

---

MAX LED Quick-Disconnect High-Speed Handpiece — Specifications

---

Working Principle

The MAX LED Quick-Disconnect High-Speed Handpiece operates on a pneumatic turbine principle. Compressed air enters through the quick-disconnect coupling at 0.22–0.25 MPa, driving the internal turbine rotor to achieve rotational speeds of 320,000–350,000 RPM.

The quick-disconnect coupling uses a precision-engineered push-and-lock mechanism integrated into the black collar assembly at the handpiece base. When connected, the coupling creates an airtight, watertight seal between the dental unit tubing and the handpiece body, maintaining full air pressure integrity and water channel continuity at operating pressure. When disconnection is required, a simple collar release action breaks the seal instantly, allowing the handpiece to be lifted free without threading, wrenching, or tool use. The air and water supply seals close automatically upon disconnection, preventing fluid spillage during handpiece removal.

The LED circuit is powered by the air-driven system and activates simultaneously with turbine engagement, placing a focused beam of light at the bur tip for the duration of the operative cycle. The 3-point anti-suckback system seals three check valves the moment forward air pressure ceases at pedal release, preventing retrograde negative pressure from developing within the head and water channel. The single-jet cooling spray delivers targeted water to the bur-tooth contact zone throughout the cutting cycle.

---

Clinical Practice of the MAX LED Quick-Disconnect High-Speed Handpiece

1. Pre-Operative Setup

• Inspect the handpiece body, LED lens area, and quick-disconnect coupling for any visible damage before use.
• Align the quick-disconnect collar with the dental unit tubing connector and engage until the coupling locks — confirm a secure, click-confirmed connection before activation.
• Confirm air pressure is within 0.22–0.25 MPa at the unit.
• Install the appropriate bur using the push-button release and confirm secure chuck engagement.
• Run the handpiece unloaded for 5–10 seconds to verify turbine rotation, LED output, single-jet cooling spray, and anti-suckback valve readiness. Confirm the quick-disconnect coupling shows no air or water leakage at operating pressure.

2. Intraoperative Management

• Use the LED illumination continuously to monitor cavity margins, preparation depth, and residual caries throughout the procedure — particularly valuable when working in posterior regions where overhead lighting is most frequently obstructed by the handpiece body itself.
• The quick-disconnect system’s primary intraoperative benefit is speed during instrument swaps: when switching between handpieces during multi-instrument procedures, the quick-disconnect eliminates the threading delay of conventional connections, maintaining procedural rhythm.
• Maintain light, intermittent contact between bur and tooth surface; avoid sustained pressure that can stall the turbine or create abnormal pressure differentials within the anti-suckback valve system.
• Monitor the single-jet spray throughout the procedure to ensure it remains directed at the cutting site.
• Confirm operating noise remains ≤60 dB; abnormal vibration or pitch change requires immediate handpiece retirement.

3. Post-Operative Maintenance

• Remove the bur immediately after the procedure using the push-button release.
• Disengage the quick-disconnect coupling to remove the handpiece from the unit for sterilization — the disconnect process seals both the handpiece base and the unit tubing connector automatically, preventing fluid drip during removal.
• Run the unit tubing for 20–30 seconds after handpiece removal to flush the dental unit waterlines per infection control protocol.
• Inspect the quick-disconnect coupling seals and the LED lens for debris, scale, or damage before sterilization.
• Lubricate the handpiece internally per the manufacturer’s protocol before every sterilization cycle.
• Sterilize in a Class B autoclave at 135°C. After sterilization, confirm quick-disconnect coupling integrity before returning the handpiece to clinical use.

---

The Function of the MAX LED Quick-Disconnect High-Speed Handpiece

The MAX LED Quick-Disconnect High-Speed Handpiece is engineered for clinical environments where instrument changeover speed, operative visibility, and infection control are simultaneous priorities — settings such as busy group practices, multi-operatory clinics, and surgical environments where multiple handpieces are rotated through a single dental unit in rapid succession.

The quick-disconnect system’s operational value becomes most apparent at scale. In a practice performing 20 or more procedures per day, the cumulative time spent threading and unthreading conventional handpiece connections for sterilization cycling is substantial. The quick-disconnect reduces each connection and disconnection event to a single-action operation, saving meaningful time across the clinical day while also reducing the wear on both the handpiece connection thread and the dental unit tubing fitting that accumulates with repeated conventional threading.

The LED illumination and 3-point anti-suckback system complete the instrument’s specification. The LED ensures that every procedure benefits from direct-source lighting at the bur tip regardless of handpiece orientation or patient positioning, while the anti-suckback system ensures that the rapid instrument changeovers enabled by the quick-disconnect do not come at the cost of cross-contamination protection. Together, these three systems make the MAX LED Quick-Disconnect a purpose-built solution for high-throughput clinical practice.

---

Important Notes for Using the MAX LED Quick-Disconnect High-Speed Handpiece

1. Always confirm air supply pressure is within 0.22–0.25 MPa. The quick-disconnect coupling seal, LED circuit, and 3-point anti-suckback valves are all calibrated for this operating range; significantly out-of-range pressure affects all three systems.
2. Always verify the quick-disconnect coupling is fully locked before activating the handpiece. A partially engaged coupling can separate under operating air pressure, creating a sudden disconnection event during clinical use.
3. Inspect the quick-disconnect coupling seals before each clinical session. Worn or damaged seals reduce the airtight integrity of the connection, which can affect both operating air pressure at the turbine and the sealed environment required by the anti-suckback system.
4. Use only burs with a shank diameter of Φ1.595–1.600 mm. Out-of-tolerance burs compromise chuck sealing, which is part of the anti-suckback system’s barrier at the bur entry point.
5. Do not activate the handpiece without a bur properly installed. An open chuck compromises the head’s sealed environment and the anti-suckback protection at the bur entry point.
6. Operate the push-button bur release only after the turbine has fully stopped. Bur changes during spin-down risk chuck damage and create pressure differentials that can stress the anti-suckback valve seating.
7. Lubricate before every sterilization cycle. The internal turbine bearing assembly requires adequate lubrication to function correctly and resist corrosion through repeated autoclave cycles.
8. Sterilize at 135°C autoclave only. Chemical sterilization agents are incompatible with the metal body, quick-disconnect coupling seals, LED assembly, and anti-suckback valve components; chemical exposure degrades all four systems simultaneously.
9. After each sterilization cycle, inspect the quick-disconnect coupling, LED lens, and handpiece body. Coupling seal deformation, lens discoloration, or body surface damage are grounds for component service or handpiece retirement as applicable.
10. Clean the LED lens gently with a soft cloth after sterilization to maintain optimal light output; never use abrasive materials on the lens surface.
