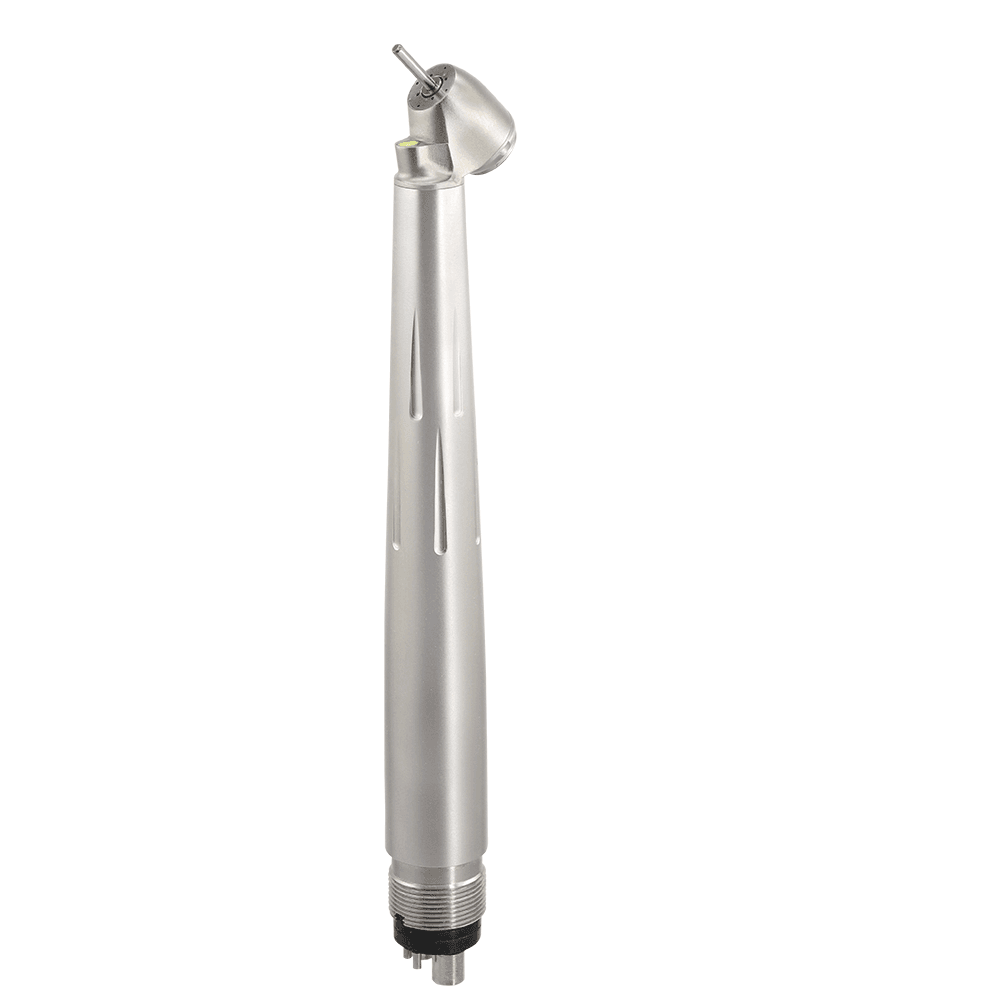

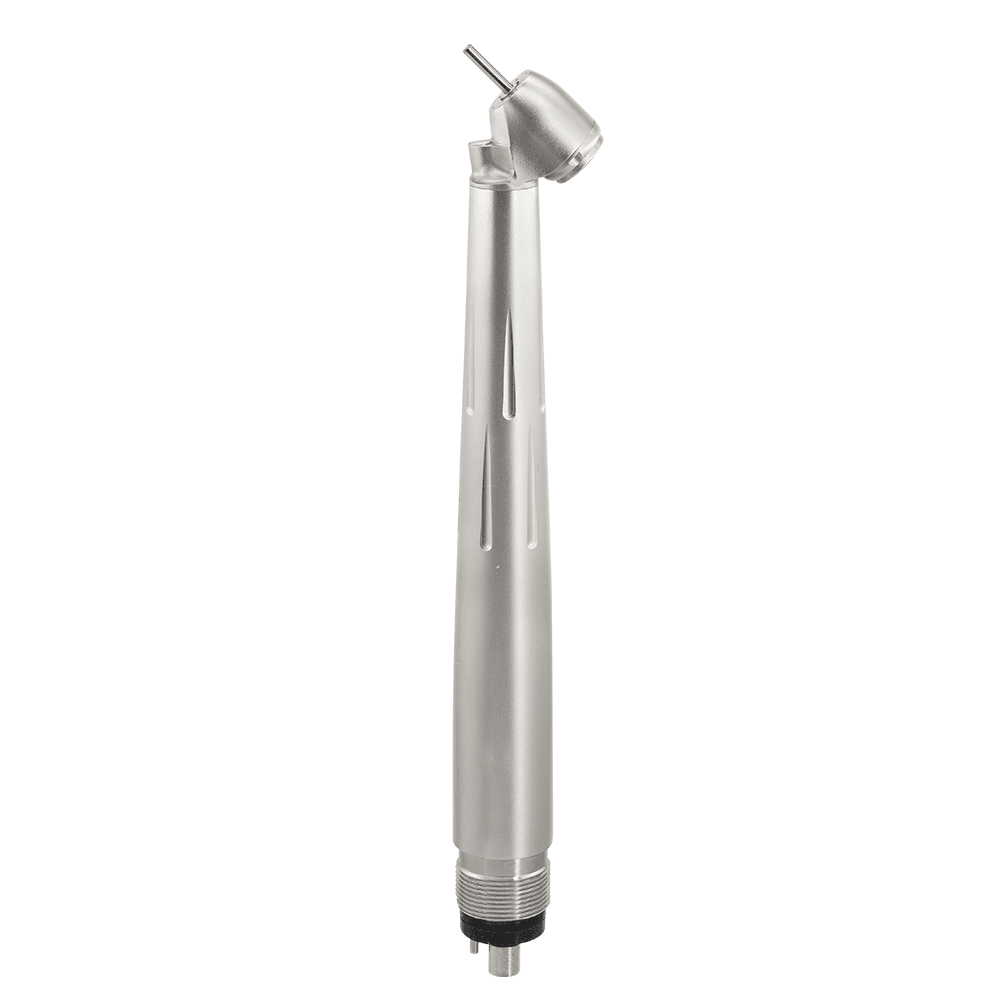

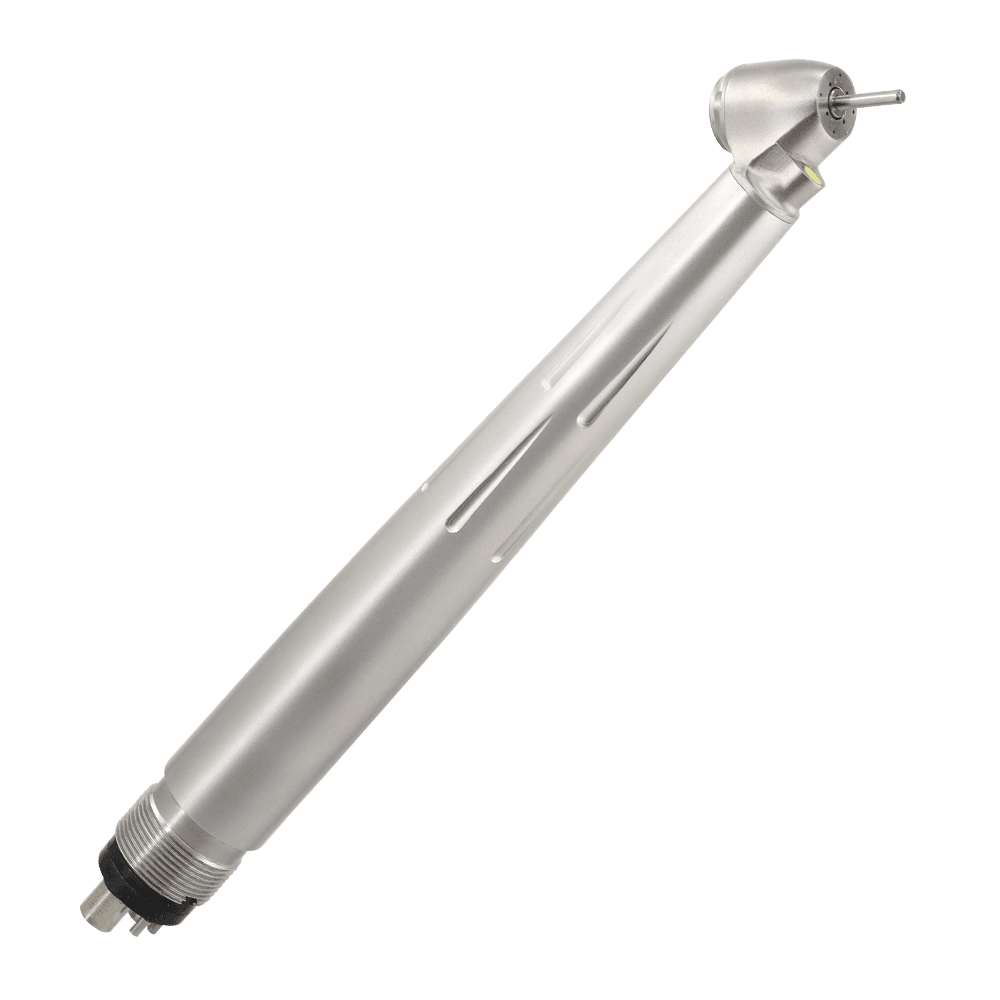

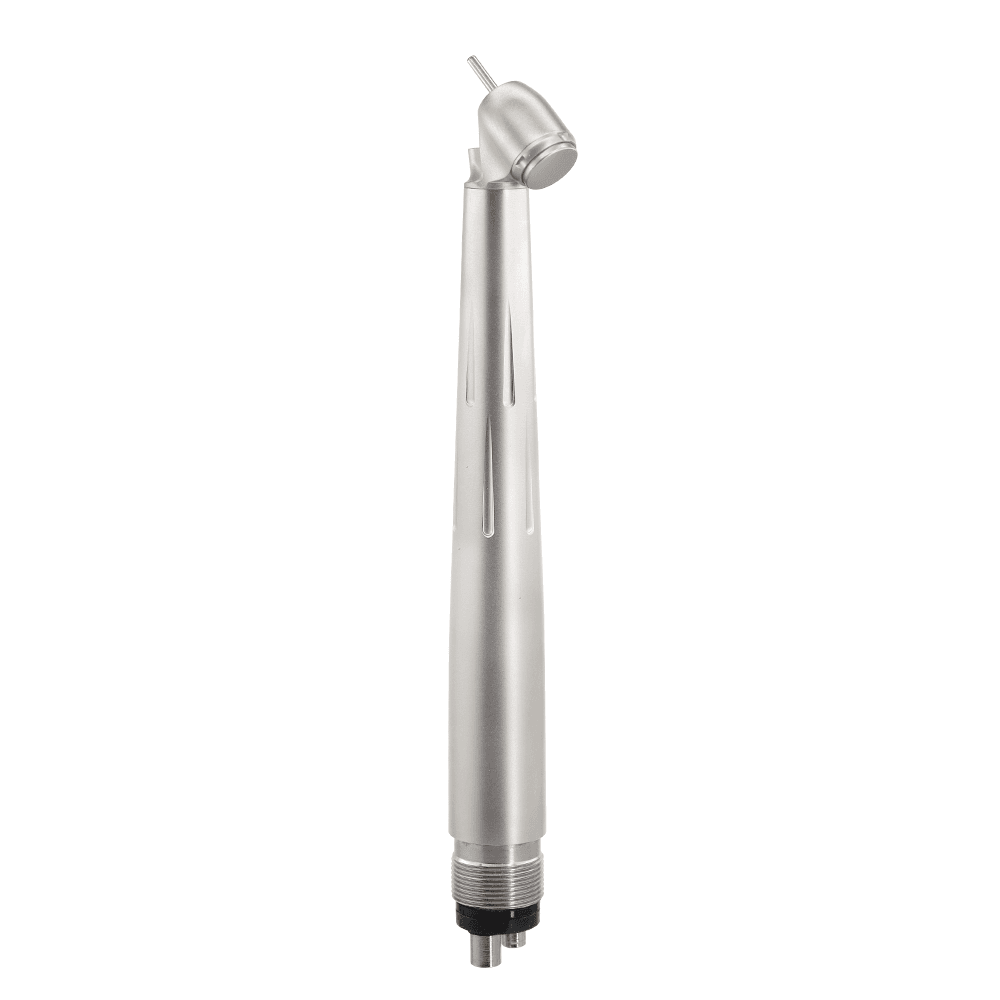

45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece

Description

45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece

• Willow-leaf groove pattern for enhanced ergonomic grip
• Titanium-coated body for superior corrosion resistance and premium aesthetics
• Multi-point water spray cooling with rear exhaust design
• Built-in LED illumination for shadow-free surgical visibility
• Push-button bur release for fast, one-handed bur changes
• Available in 2-hole and 4-hole connection interfaces
• Compatible with autoclave sterilization at 135°C

[Send Inquiry]

---

Description

The 45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece is a premium dental instrument that combines a distinctive 45-degree angled head with multi-point water spray cooling and an integrated LED light source, all housed in a titanium-coated body finished with an elegant willow-leaf groove pattern. Designed for clinicians who demand both clinical performance and refined craftsmanship, this handpiece delivers superior access to posterior regions of the oral cavity while ensuring comprehensive cooling coverage and bright, shadow-free illumination at the operative site.

The titanium coating provides outstanding resistance to corrosion, wear, and surface degradation across repeated sterilization cycles, while the willow-leaf groove surface texture ensures a secure, non-slip grip even in moisture-heavy clinical environments. Operating at 320,000–350,000 RPM with a working pressure of 0.22–0.25 MPa, the handpiece delivers consistent, high-torque cutting performance across all clinical applications.

---

Feature

• The 45-degree angled head geometry provides improved access to posterior teeth and distal molar surfaces, enabling more precise preparation with a more neutral wrist position and reduced operator fatigue during extended procedures.
• The multi-point water spray cooling system delivers simultaneous water coverage from multiple nozzle points around the bur tip, ensuring comprehensive heat dissipation across the entire cutting zone and significantly reducing the risk of thermal damage to pulp tissue compared to single-jet systems.
• The integrated LED light source activates automatically with the air supply, casting a bright, focused beam directly onto the operative field and eliminating the shadow artifacts that occur when the handpiece body blocks overhead operatory lighting.
• The titanium-coated body offers exceptional resistance to corrosion, chemical degradation, and surface wear, maintaining its premium finish and structural integrity across hundreds of high-temperature autoclave sterilization cycles.
• The willow-leaf groove surface pattern provides a secure, ergonomic grip that reduces hand fatigue and prevents slippage during prolonged procedures, even in wet or gloved conditions.
• Compatible with both 2-hole and 4-hole connection standards, offering broad compatibility with mainstream dental unit interfaces.

---

45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece — Specifications

---

Working Principle

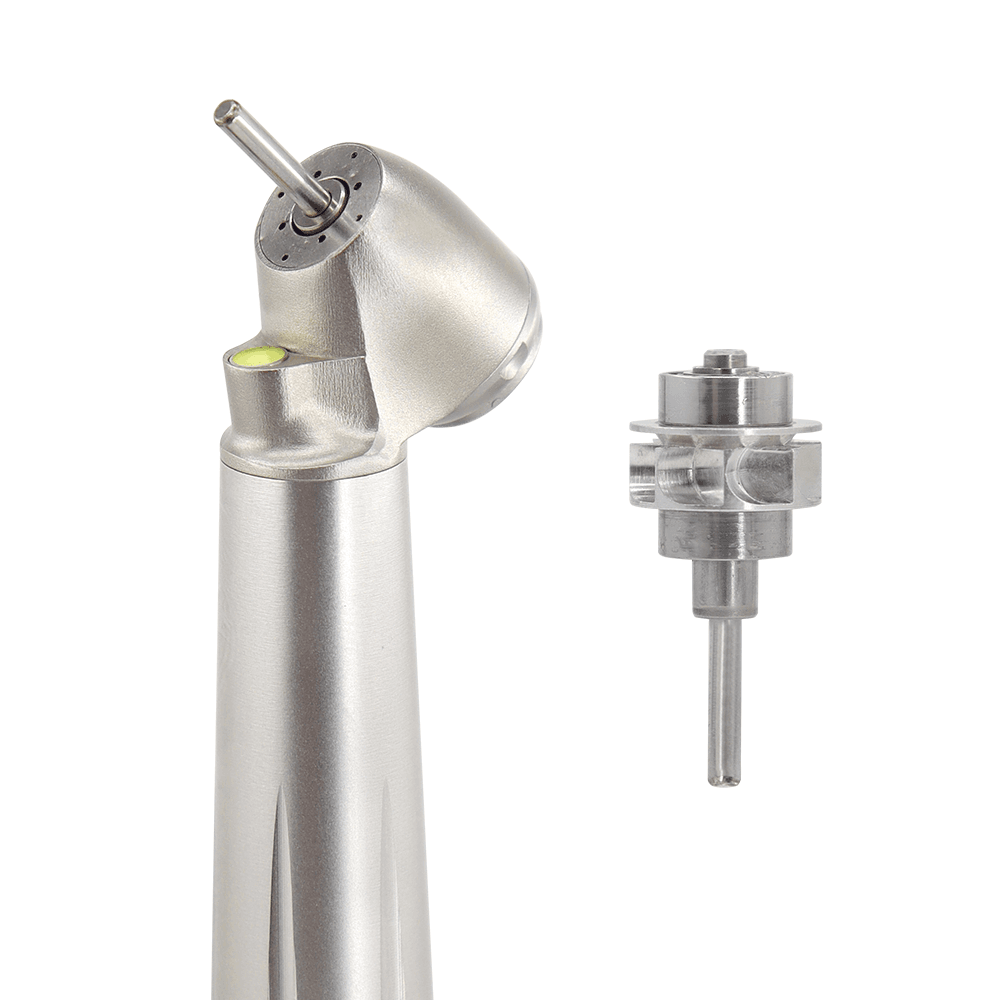

The 45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece operates on a pneumatic turbine principle. Compressed air enters through the connection interface at 0.22–0.25 MPa, driving the internal turbine rotor to reach rotational speeds of 320,000–350,000 RPM, generating the sustained cutting force required for efficient tooth preparation across enamel, dentin, and restorative materials.

The multi-point water spray cooling system is the defining technical differentiator of this handpiece. Rather than directing a single jet of water toward the bur-tooth contact point, the multi-point system disperses water simultaneously from multiple nozzle outlets surrounding the head, ensuring that every quadrant of the cutting zone receives active cooling regardless of bur orientation or cutting angle. This results in more uniform temperature control at the operative site, superior surface moisture management, and a reduced risk of localized thermal hotspots that can compromise pulp vitality. The rear exhaust design channels spent air cleanly away from the operative field. The LED system activates with air flow, providing continuous illumination without the need for external power or additional fiber-optic components.

---

Clinical Practice of the 45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece

1. Pre-Operative Setup

• Inspect the handpiece packaging for integrity and confirm the titanium-coated surface shows no signs of damage or delamination before use.
• Connect the handpiece via the 2-hole or 4-hole interface and confirm air pressure is within 0.22–0.25 MPa.
• Install the appropriate bur using the push-button release and confirm secure seating. Verify that all multi-point spray nozzles are unobstructed before activation.
• Run the handpiece unloaded for 5–10 seconds to confirm smooth turbine rotation, LED illumination, multi-point water spray distribution, and rear exhaust function.

2. Intraoperative Management

• Utilize the multi-point spray coverage advantage when performing preparations at variable cutting angles — the 360-degree cooling distribution means cooling efficacy is maintained regardless of how the bur is oriented relative to the tooth surface.
• Use the LED illumination to continuously assess cavity margins, remaining dentin thickness, and caries removal progress in real time, particularly in deep posterior preparations where overhead lighting is insufficient.
• Maintain light, intermittent contact pressure — the multi-point cooling system manages heat effectively, but sustained pressure can still stall the turbine and cause localized overheating.
• Monitor operating noise throughout the procedure; normal operation should remain ≤60 dB. Abnormal vibration or increased noise indicates bur wear or bearing degradation and requires immediate handpiece retirement.

3. Post-Operative Maintenance

• Remove the bur immediately after the procedure using the push-button release.
• Inspect all multi-point spray nozzles for blockage caused by debris or mineral scale; flush with clean water if necessary before lubrication.
• Lubricate the handpiece internally per the manufacturer’s protocol before every sterilization cycle.
• Sterilize in a Class B autoclave at 135°C. Avoid chemical sterilization agents, which may degrade the titanium coating and damage internal seals.
• After sterilization, inspect the titanium-coated surface and the LED lens for scale buildup or discoloration; clean gently with a soft cloth before storage.

---

The Function of the 45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece

The 45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece addresses three distinct clinical challenges in a single instrument: posterior access, comprehensive cooling, and operative visibility. The 45-degree head angle allows clinicians to approach second and third molars with a more ergonomic wrist position, while the multi-point spray system resolves a well-recognized limitation of single-jet cooling — namely, that a single directional jet provides effective cooling only when the bur is cutting in the direction the jet is aimed. When the bur angle shifts, the jet may miss the contact zone entirely, allowing localized heat accumulation. The multi-point system eliminates this variable by ensuring that cooling water reaches the cutting zone from multiple directions simultaneously.

The titanium coating adds both functional and aesthetic value. Functionally, it provides a harder, more chemically stable surface than standard metal bodies, extending the handpiece’s service life in high-turnover clinical environments. Aesthetically, the willow-leaf groove pattern and titanium finish give the instrument a distinctive, premium appearance that reflects the standard of care it is designed to deliver.

---

Important Notes for Using the 45° Multi-Spray Mini Titanium-Coated High-Speed Handpiece

1. Always confirm air supply pressure is within 0.22–0.25 MPa before operation. Pressure outside this range compromises both cutting performance and multi-point spray distribution, as spray nozzle output is pressure-dependent.
2. Use only burs with a shank diameter of Φ1.595–1.600 mm. Out-of-tolerance burs generate excessive vibration, reduce concentricity, and risk damage to the chuck mechanism.
3. Inspect the multi-point spray nozzles before each use. Blocked nozzles reduce cooling coverage and increase the risk of pulp thermal injury; clear any obstruction before clinical use.
4. Never activate the handpiece without a bur properly installed. Unloaded turbine operation at maximum RPM accelerates bearing wear and rotor imbalance.
5. Operate the push-button bur release only when the turbine has fully stopped. Attempting bur changes during spin-down can damage the chuck and create a bur ejection hazard.
6. Lubricate the handpiece before every sterilization cycle without exception. The multi-point spray channel system requires lubrication of internal moving parts to prevent corrosion and maintain spray nozzle integrity over repeated cycles.
7. Use only 135°C autoclave sterilization. Chemical cold sterilization solutions are incompatible with the titanium coating and may cause surface pitting, seal degradation, and LED assembly damage.
8. Periodically inspect the titanium-coated body for surface delamination, pitting, or discoloration. Compromised coating may indicate corrosion of the underlying metal body; retire the handpiece if structural integrity is in question.
9. Clean the LED lens gently after each sterilization cycle to maintain optimal light output; do not use abrasive materials on the lens surface.
